Removing Dc/Dc Converter
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

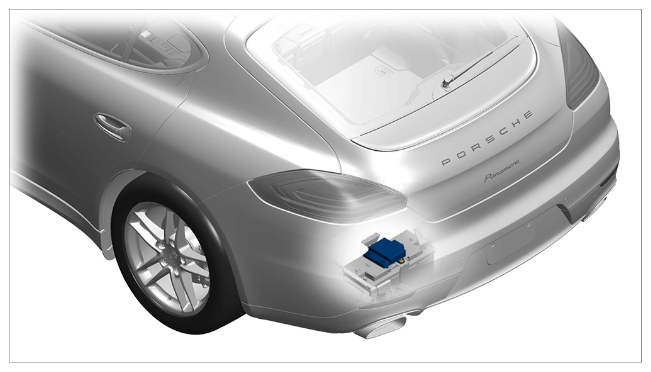

Installation position of DC/DC converter
- Release the latch on the connector -a-
and remove the connector from the DC/DC converter.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

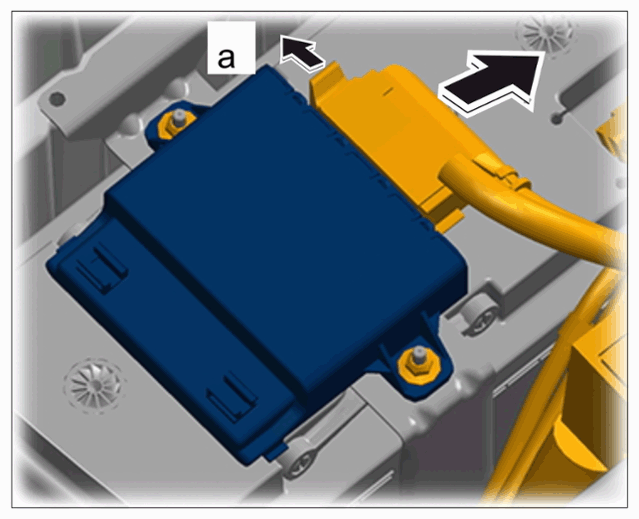

Releasing connector
- Unscrew and remove the two fastening nuts -2-
and remove the DC/DC converter -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

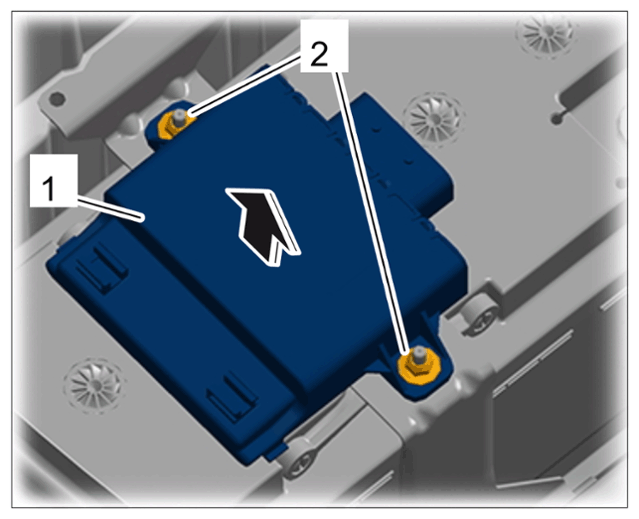

Unscrewing fastening screws
