Replacing Radiator

WARNING: This page is about a different variant/trim than selected.
  1. Remove supply and return distributor pipes.

    Loosen screws -1-  .

    Disconnect hose -2-  for distributor pipe at the bottom.

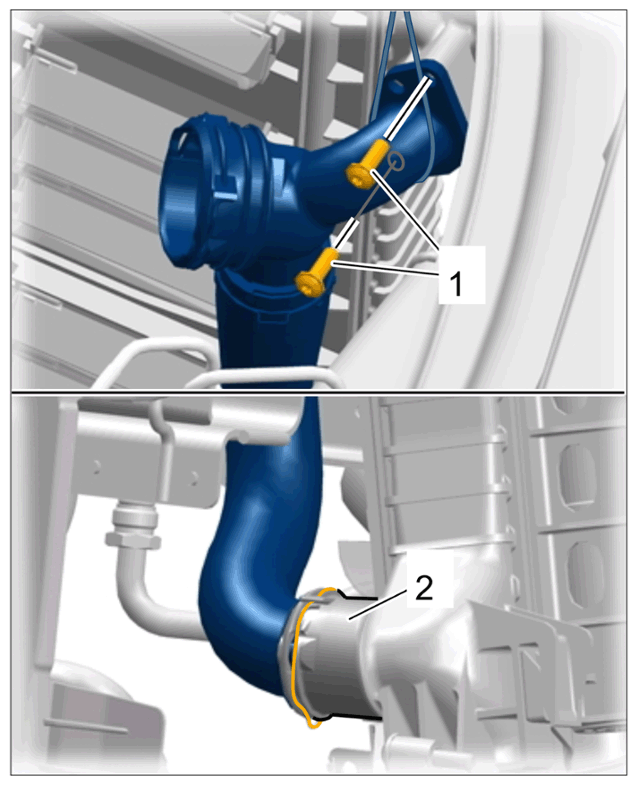

    G15198515Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Distributor pipe for radiator

  2. Install supply and return distributor pipes.

    Fit distributor pipes on the new radiator.
