Removing Coolant Regulator

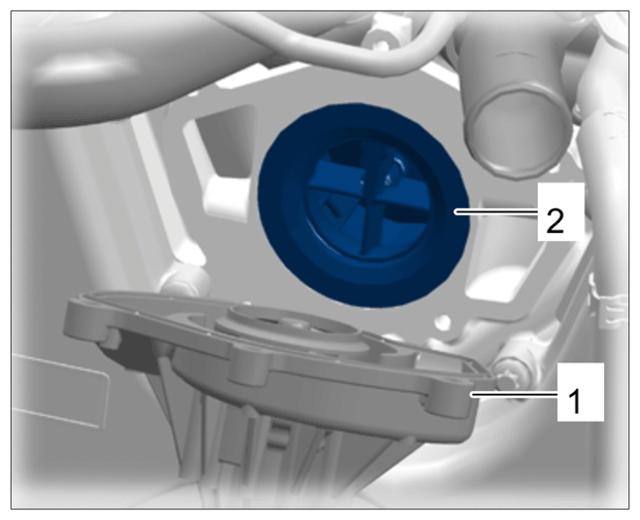

Removed water pump -1-  and coolant regulator -2-  =>

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator installed

1. Release cable plug -1-  for the coolant regulator by inserting an angled pointed-nose pliers between the crankcase and coolant regulator housing and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

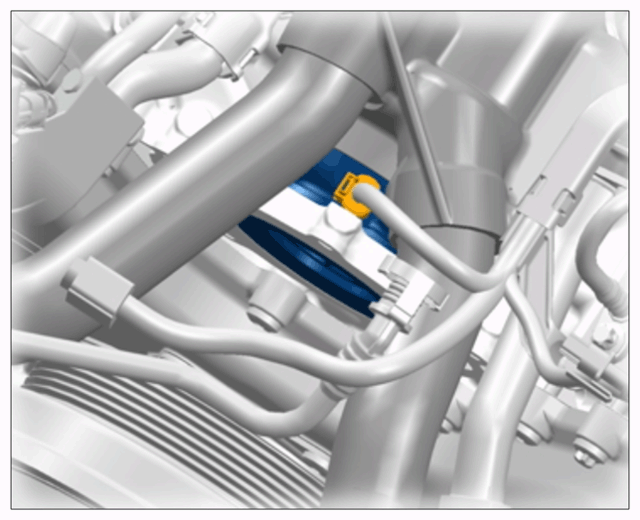

   Cable plug for coolant regulator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

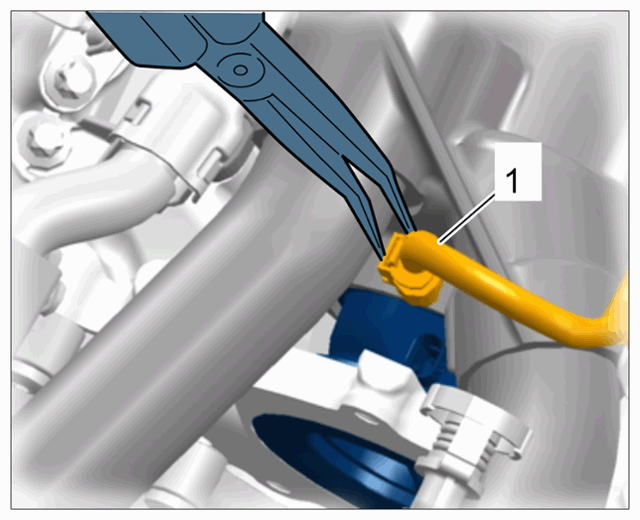

   Pointed-nose pliers with cable plug

2. Remove coolant regulator using shop-made tool.

   Use pointed-nose pliers to wrap a piece of wire or stiff electric cable through several spokes of the coolant regulator. Figure showing screwdriver > Secured electric cable.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

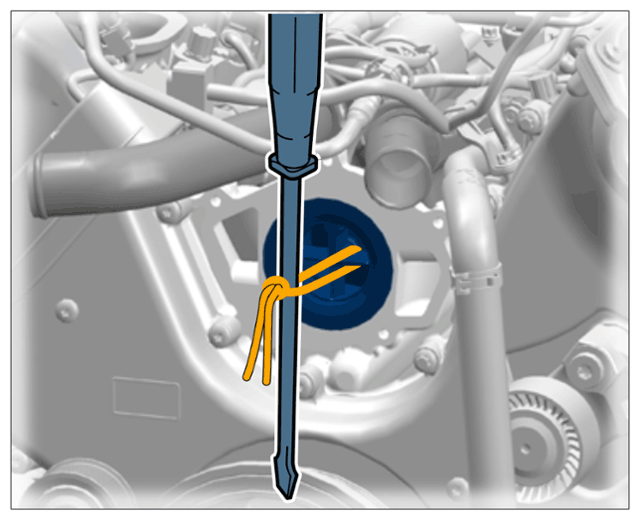

   Secured electric cable

   Tie a knot in the wire or electric cable to prevent it from being pulled out -2-  .

   Insert an assembly lever or a large screwdriver through the cable. > Secured electric cable

   Pull coolant regulator completely out of the crankcase or coolant regulator housing. Support the assembly lever under the vibration balancer if necessary. > Secured electric cable  Figure shows removed coolant regulator > Removed coolant regulator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

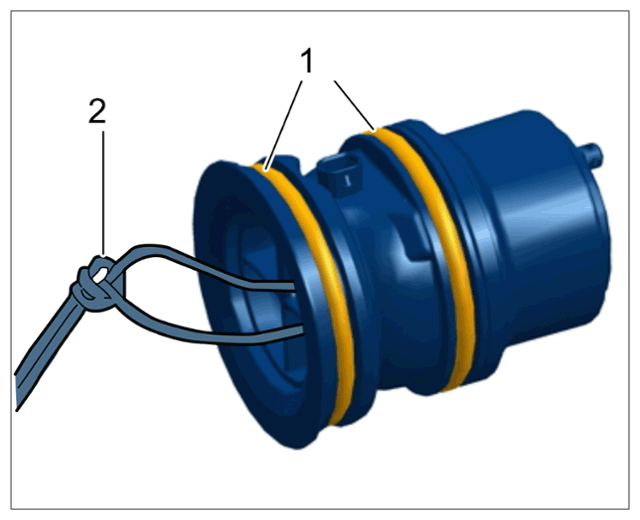

   Removed coolant regulator
