Checking Engine Coolant Level
WARNING: This page is about a different variant/trim than selected.
- Engine cold
- Vehicle horizontal

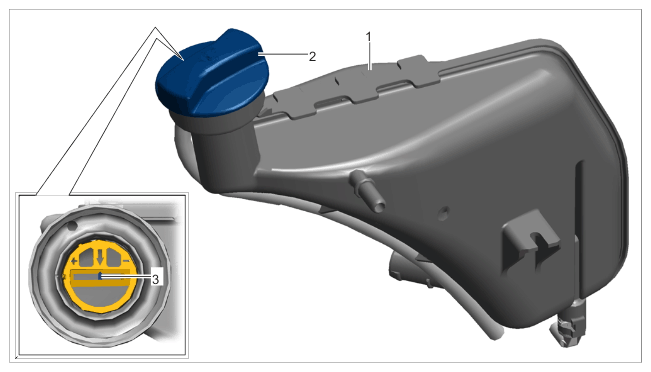

- Check level indicator on coolant reservoir -1-
The pointer -3-
for the level indicator should be below the arrow between the plus and the minus mark. The ideal fill level is between the plus mark and the arrow.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Engine coolant level
