Removing Rear Spoiler Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

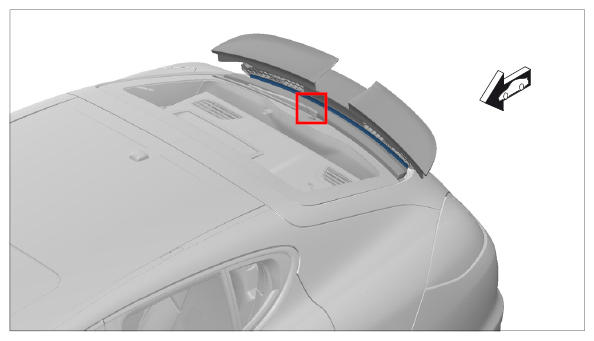

- Remove closing element of rear spoiler.

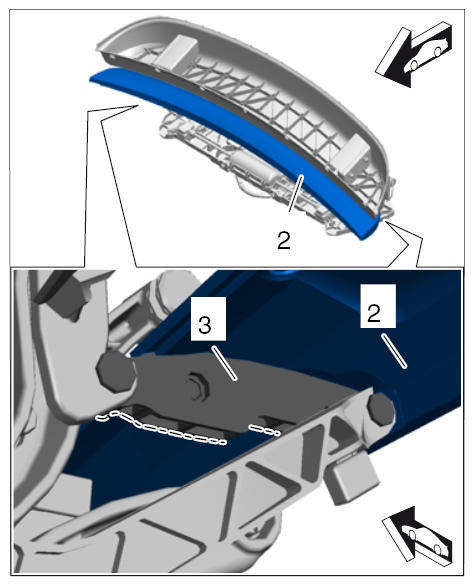

- 1.1. Mark installation position of closing element of rear spoiler -2-
with respect to the two spoiler drives -3-
.

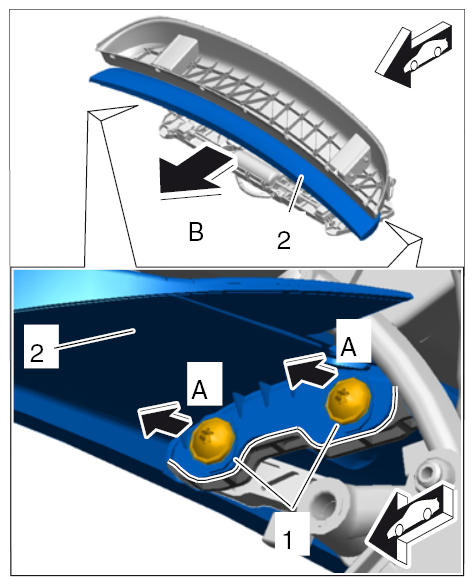

- 1.2. Unscrew and remove fastening screws -1-
on closing element of rear spoiler -2-
on both sides -arrows A-
.
- 1.3. Remove closing element of rear spoiler -2-
- -arrow B-
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

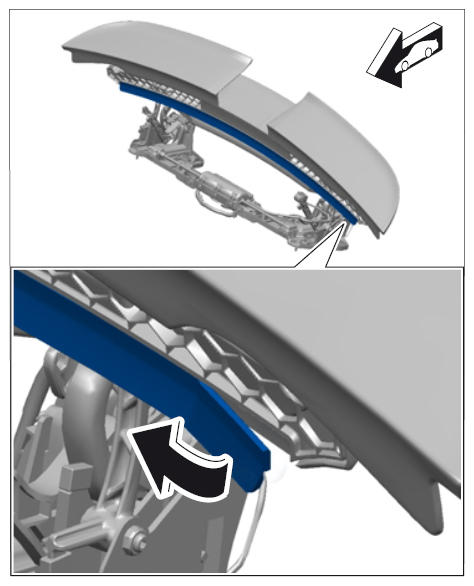

- Pull rear spoiler seal off the lower part of rear spoiler -arrow-
.
