Removing Deflection Lever

WARNING: This page is about a different variant/trim than selected.

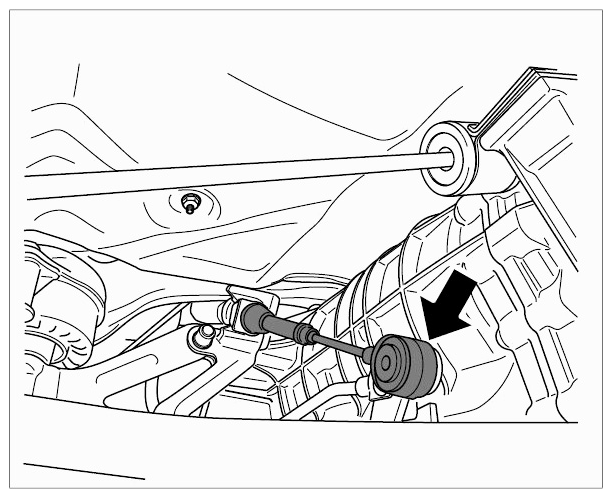

Lever selector cable off ball pin.

Fig 1: Locating Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

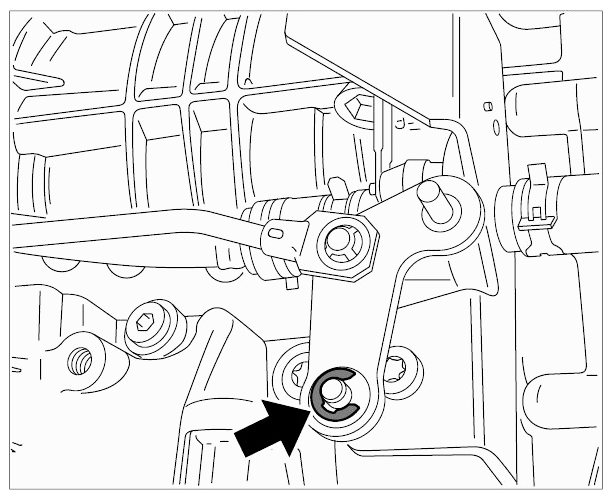

Unclip push rod on transmission lever.

Fig 2: Locating Transmission Lever Push Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

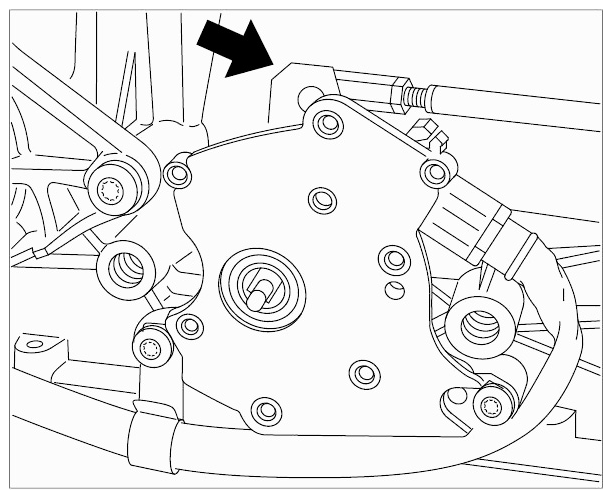

Remove circlip for deflection lever and remove deflection lever with push rod.

Fig 3: Locating Deflection Lever Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
