Installing Deflection Lever

WARNING: This page is about a different variant/trim than selected.
  1. Grease deflection lever axle and bushings with Optimol TA.
  2. Install deflection level and fit circlip.

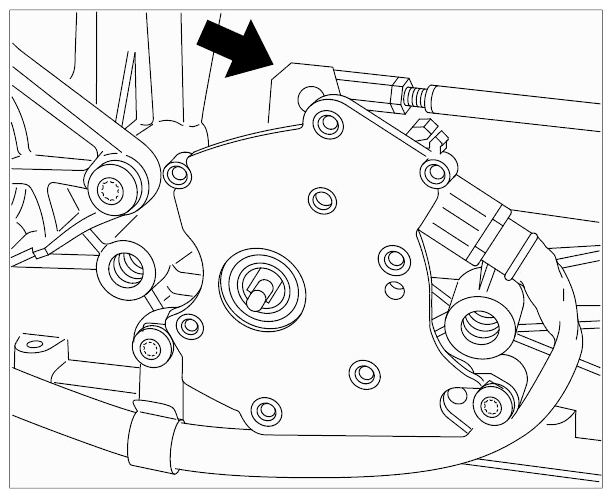

    Fig 1: Locating Deflection Lever Circlip
    G09587151Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in push rod on transmission lever.

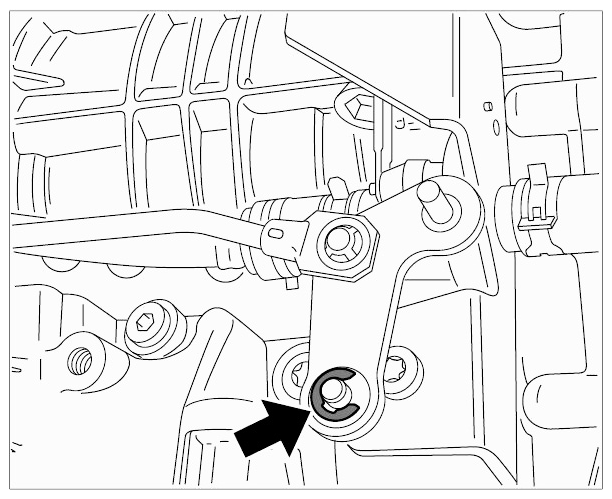

    Fig 2: Locating Transmission Lever Push Rod
    G09587152Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press on selector cable on ball pin.

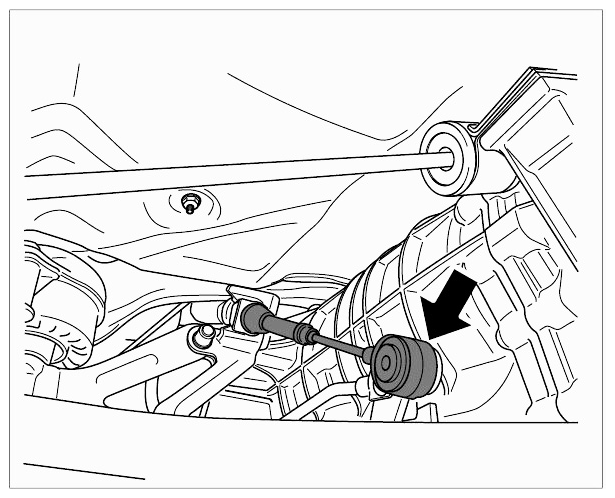

    Fig 3: Locating Selector Cable
    G09587153Courtesy of PORSCHE CARS NORTH AMERICA, INC.
