Draining ATF
WARNING: This page is about a different variant/trim than selected.
NOTE:
Fill level too low
- Risk of damage to components.
→ Do not start the engine.
→ Do not tow the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.

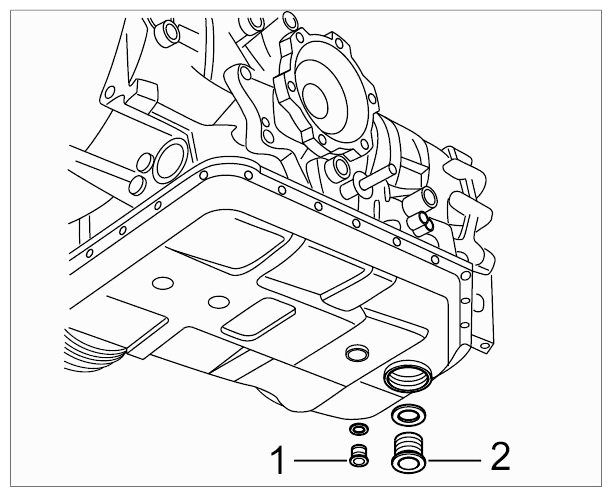

- Unscrew drain plug -1- and drain ATF.
- Replace sealing ring for drain plug and tighten screw. → Tightening torque: 40 Nm (30 ftlb.) .
