Installing Seal For Spur-Gear Cover

WARNING: This page is about a different variant/trim than selected.
  1. Centering pins 9321  must be screwed into the transmission housing.
  2. Position new seal on transmission housing.
  3. Position spur-gear cover on transmission housing, screw in screws -1, 2 and 3-  and tighten evenly by hand.

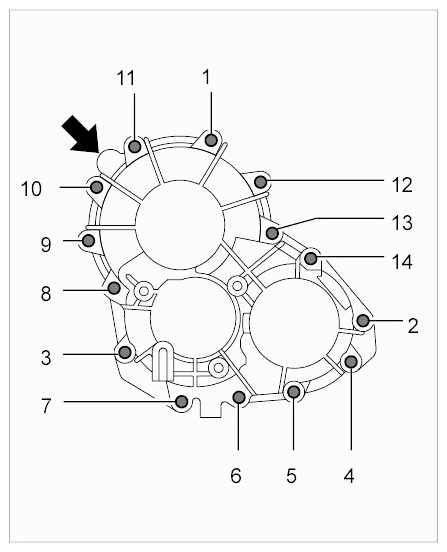

    Fig 1: Locating Transmission Housing Spur-Gear Cover
    G09587132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Screw in remaining screws and tighten in the sequence -1...14-  .
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Spur-gear cover Fastening screws between transmission housing and spur-gear cover Tightening torque 23 Nm (17 ftlb.)
  5. Install exhaust system mount and tighten fastening screws between the transmission and exhaust system mount.

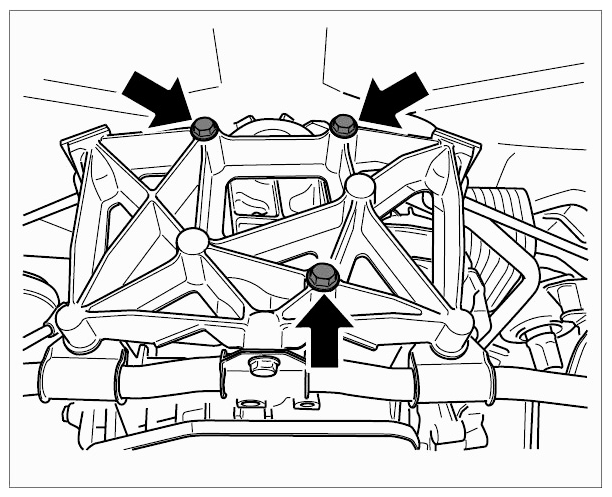

    Fig 2: Locating Exhaust System Mount Fastening Screws
    G09587133Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Exhaust system mount Fastening screws between transmission housing and mount Tightening torque 45 Nm (33 ftlb.)
