Removing The Automatic Transmission

WARNING: This page is about a different variant/trim than selected.
  1. Pull vacuum line off the change-over valve.

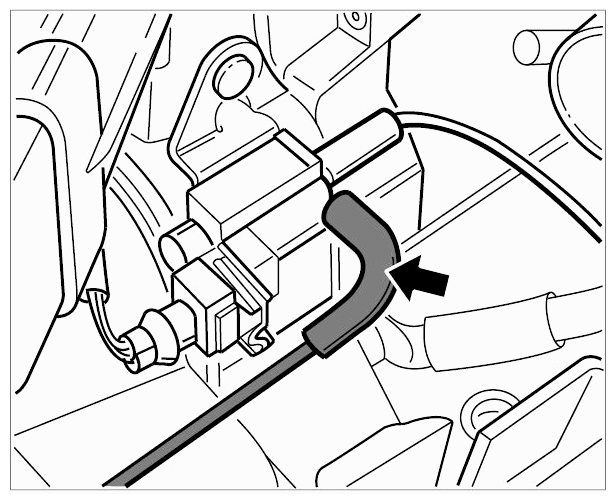

    Fig 1: Locating Vacuum Line
    G09587101Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew vent line on engine transport eyebolt.

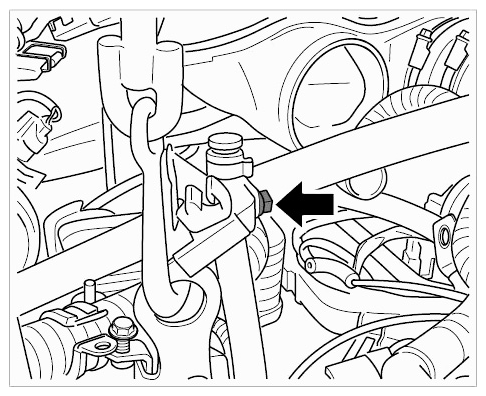

    Fig 2: Locating Vent Line
    G09587102Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew retaining screw between the transmission and the coolant pipe.

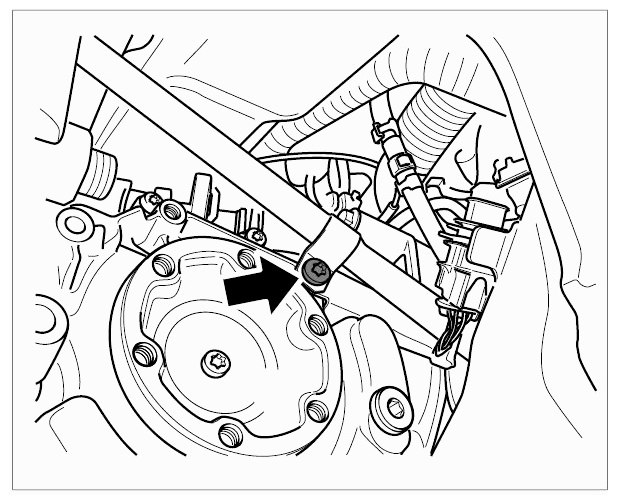

    Fig 3: Locating Coolant Pipe Retaining Screw
    G09587103Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Place collection pan for coolant under the transmission.
  5. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.

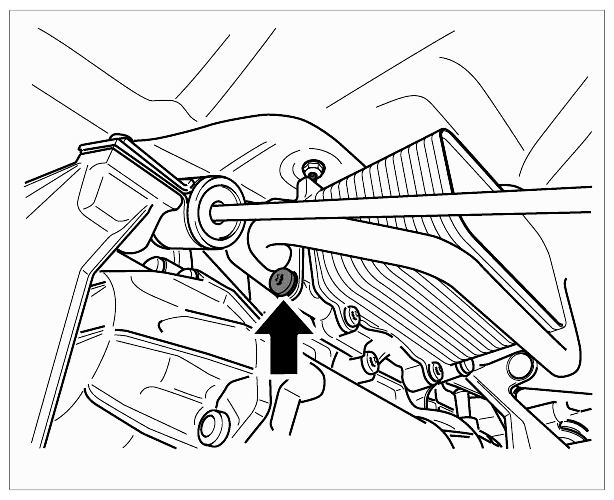

    Fig 4: Locating Coolant Line
    G09587104Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.

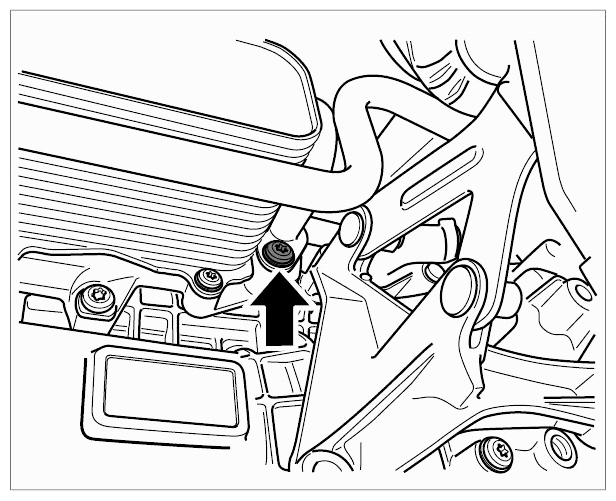

    Fig 5: Locating Coolant Line
    G09587105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Attach transmission to workshop crane.
  8. Unscrew fastening screws -1 to 7-  and pull out transmission to the rear, separating it from the engine.
    Fig 6: Identifying Transmission Engine Screws Tightening Sequence
    G09587106Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Pull vacuum line off the change-over valve.
    Fig 1: Locating Vacuum Line
    G09587107Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip vent line on engine transport eyebolt.

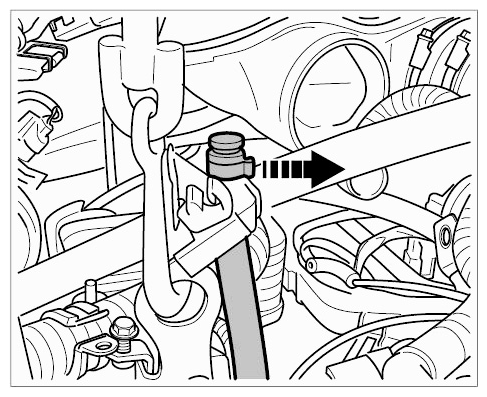

    Fig 2: Removing Engine Transport Eyebolt Retaining Clip
    G09587108Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew retaining screw between the transmission and the coolant pipe.
    Fig 3: Locating Retaining Screw
    G09587109Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Place collection pan for coolant under the transmission.
  5. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.

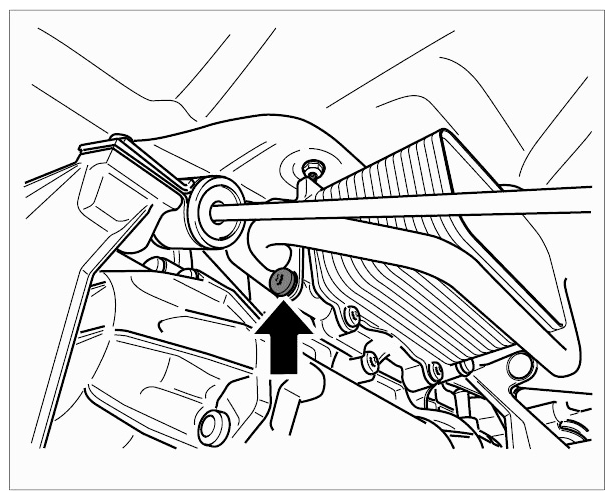

    Fig 4: Locating Coolant Line
    G09587110Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew fastening screw between ATF cooler and coolant line and pull coolant line out of ATF cooler.
    Fig 5: Locating Coolant Line
    G09587111Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Attach transmission to workshop crane.
  8. Unscrew fastening screws -1 to 7-  and pull out transmission to the rear, separating it from the engine.

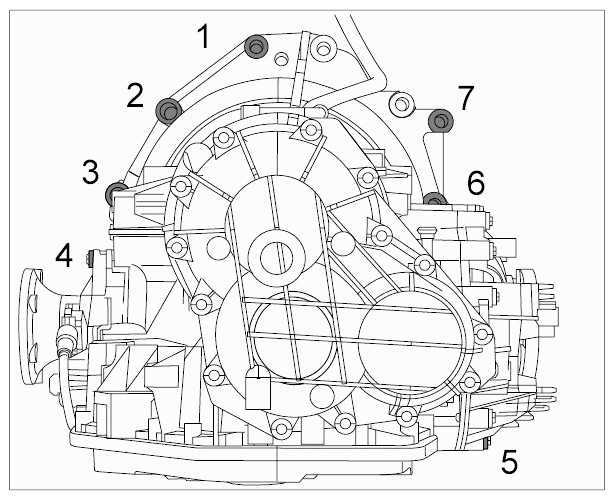

    Fig 6: Identifying Transmission Engine Screws Tightening Sequence
    G09587112Courtesy of PORSCHE CARS NORTH AMERICA, INC.
