Mounting Automatic Transmission: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Move transmission into position and screw in fastening screws -1 to 7-  .

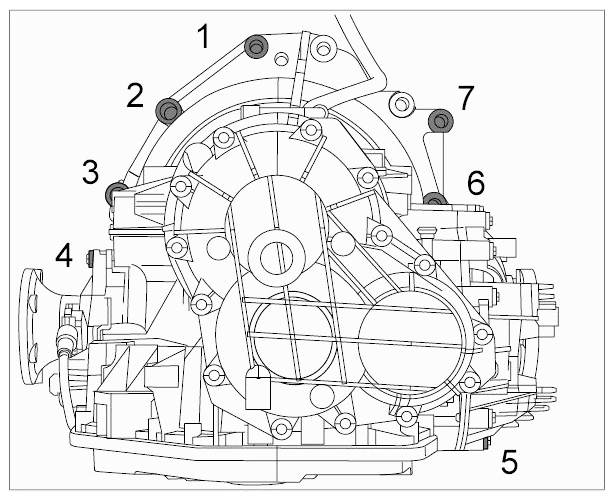

    Fig 1: Identifying Transmission Engine/Engine Screws Tightening Sequence
    G09587113Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Transmission/engine connection Hexagon-head bolt no. 1 in figure, M12 x 70 Tightening torque 85 Nm (63 ftlb.)
    Transmission/engine connection Hexagon-head bolt no. 2 in figure (M12 x 100); with washer Tightening torque 85 Nm (63 ftlb.)
    Transmission-engine connection Hexagon bolt No. 3 (M12 x 90) in illustration Tightening torque 85 Nm (63 ftlb.)
    Transmission/engine connection Internal-serration screw no. 4 in figure M10 x 50 Tightening torque 45 Nm (33 ftlb.)
    Transmission-engine connection Nut No. 5 (M10) in illustration Tightening torque 45 Nm (33 ftlb)
    Transmission-engine connection Hexagon bolt No. 6 M12 x 70 in graphic Tightening torque 85 Nm (63 ftlb.)
    Transmission-engine connection Hexagon bolt No. 7 (M12 x 90) in illustration Tightening torque 85 Nm (63 ftlb.)
  2. Loosen transmission from workshop crane.
  3. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.

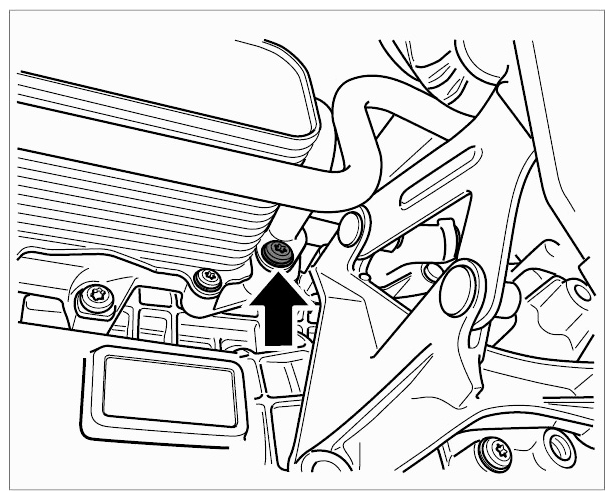

    Fig 2: Locating Coolant Line
    G09587114Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Fastening screw Fastening screws between coolant pipes and ATF cooler Tightening torque 23 Nm (17 ftlb.)
  4. Insert coolant pipe with new O-ring in ATF cooler and screw in fastening screw.

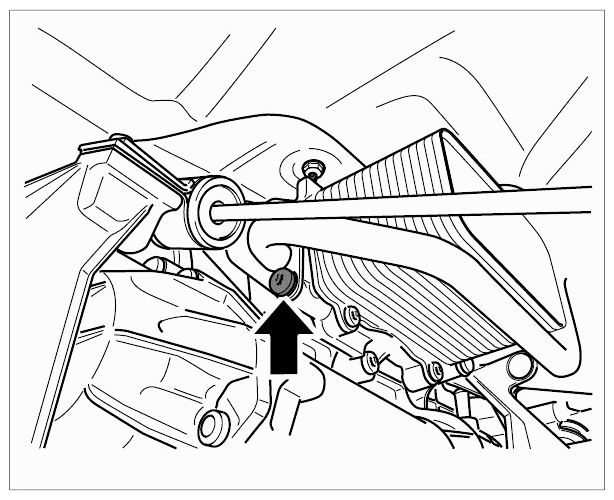

    Fig 3: Locating Coolant Line
    G09587115Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Fastening screw Fastening screws between coolant pipes and ATF cooler Tightening torque 23 Nm (17 ftlb.)
  5. Screw in retaining screw between the transmission and the coolant pipe.

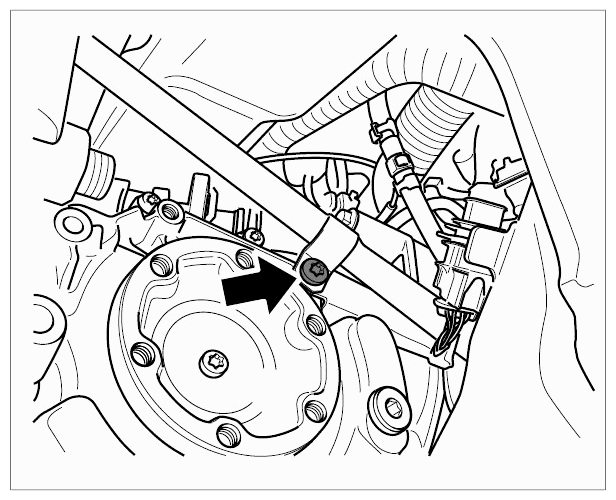

    Fig 4: Locating Retaining Screw
    G09587116Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Retaining screw Retaining screws between coolant pipe and transmission Tightening torque 23 Nm (17 ftlb.)
  6. Clip in vent line on engine transport eyebolt.

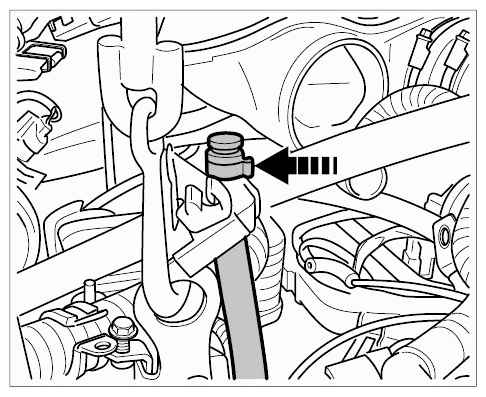

    Fig 5: Installing Vent Line
    G09587117Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Push vacuum pipe onto change-over valve.

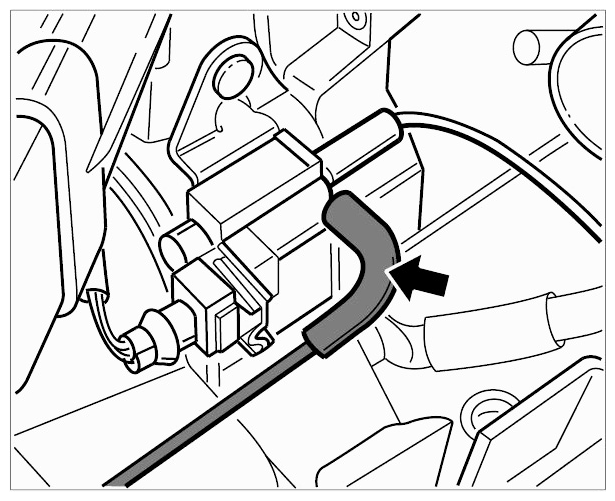

    Fig 6: Locating Change-Over Valve Vacuum Line
    G09587118Courtesy of PORSCHE CARS NORTH AMERICA, INC.
