Removing Converter Bolts

WARNING: This page is about a different variant/trim than selected.
  1. Turn crankshaft to the extent that one of the U4, U5 or U6 bores in the belt pulley is aligned with the centering bore in the crankcase.

    Information

    • The crankshaft is fixed in a defined position by inserting the fixing pin.
    • If the fixing pin can not be inserted, check the correct positioning of the belt pulley in relation to the crankcase.
  2. Insert locating pins (short) 9595/1  through the belt pulley in the crankcase housing bore.
    Fig 1: Inserting Pin Into Crankcase Housing Bore
    G09587027Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Insert assembly aid 9596  into starter opening.

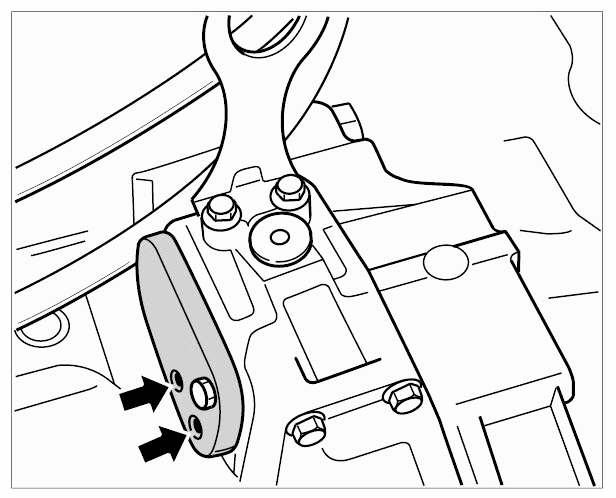

    Fig 2: Inserting Assembly Aid 9596 Into Starter Opening
    G09587028Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew converter fastening screws with 6mm hexagon socket through the openings -arrows-  in the assembly aid 9596  .
  5. Pull locating pins (short) 9595/1  out of the belt pulley.
  6. Turn crankshaft by 120° so that one of the U4, U5 or U6 bores in the belt pulley is aligned with the centering bore in the crankcase.

    Information

    • The crankshaft is fixed in a defined position by inserting the fixing pin.
    • If the fixing pin can not be inserted, check the correct positioning of the belt pulley in relation to the crankcase  .
  7. Insert locating pins (short) 9595/1  through the belt pulley in the crankcase housing bore.

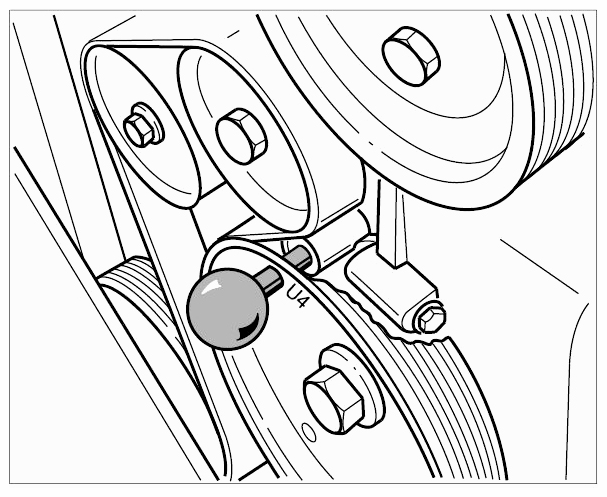

    Fig 3: Inserting Pin Into Crankcase Housing Bore
    G09587029Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Unscrew converter fastening screws with 6mm hexagon socket through the openings -arrows-  in the assembly aid 9596  .
  9. Pull locating pins (short) 9595/1  out of the belt pulley.
  10. Turn crankshaft by 120° so that one of the U4, U5 or U6 bores in the belt pulley is aligned with the centering bore in the crankcase.

    Information

    • The crankshaft is fixed in a defined position by inserting the fixing pin.
    • If the fixing pin can not be inserted, check the correct positioning of the belt pulley in relation to the crankcase  .
  11. Insert locating pins (short) 9595/1  through the belt pulley in the crankcase housing bore.

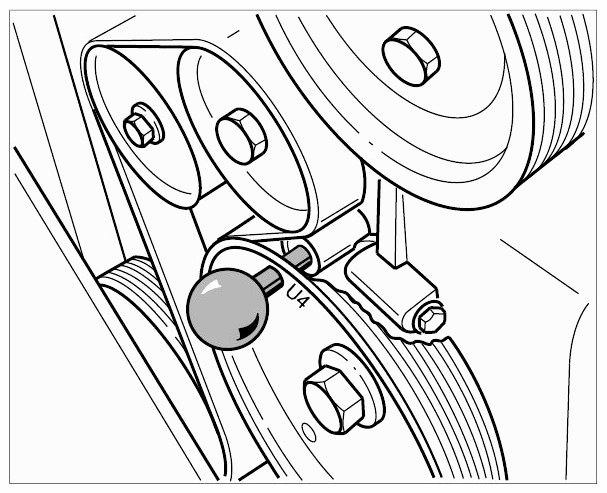

    Fig 4: Inserting Pin Into Crankcase Housing Bore
    G09587030Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Unscrew converter fastening screws with 6mm hexagon socket through the openings -arrows-  in the assembly aid 9596  .
  13. Unscrew support for positive crankcase ventilation line on engine transport eyebolt.

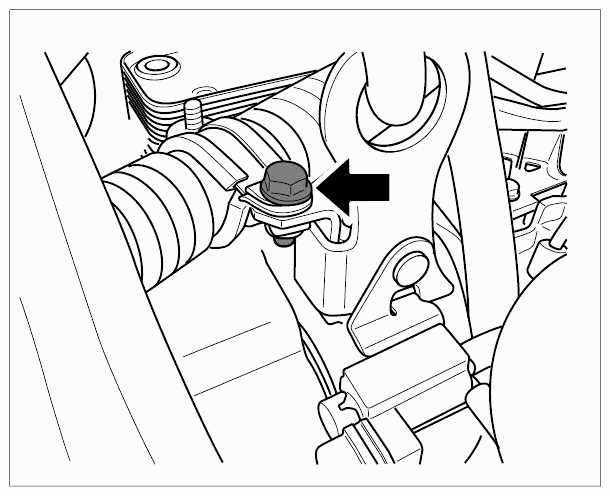

    Fig 5: Locating Engine Transport Eyebolt
    G09587031Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Push locating pins (long) 9595/1  through the opening in the transmission housing to prevent the transformer from falling out.

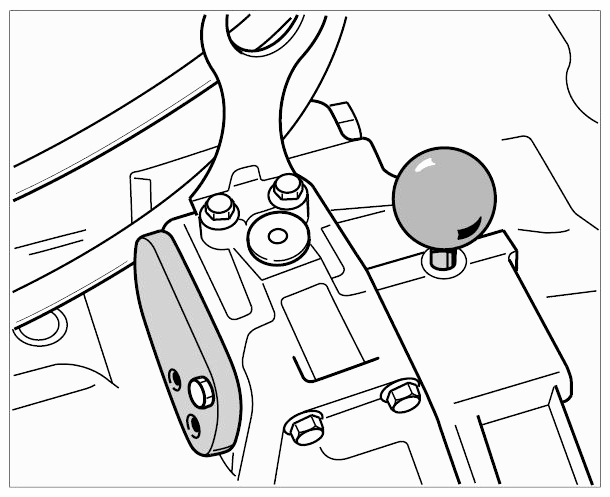

    Fig 6: Pushing Pin Into Transmission Housing
    G09587032Courtesy of PORSCHE CARS NORTH AMERICA, INC.
