Installing Automatic Transmission: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
Vehicle can fall down
- Risk of squashing or crushing
- Risk of damage to the vehicle
→ Do not place any solid objects under the raised vehicle.
→ Ensure that the lifting platform is prevented from lowering.
→ Remove solid objects before lowering the vehicle.
→ Raise the vehicle only at the jacking points provided.
→ The outer jacking points should be used primarily.

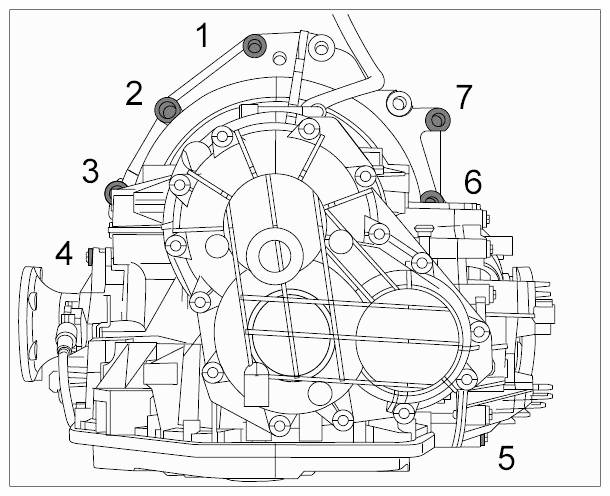

- Move in transmission and screw in fastening screws -1 to 7-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Location Description Type Basic value Tolerance 1 Tolerance 2 Transmission/engine connection Hexagon-head bolt no. 1 in figure, M12 x 70 Tightening torque 85 Nm (63 ftlb.) Transmission/engine connection Hexagon-head bolt no. 2 in figure M12 x 100; with washer Tightening torque 85 Nm (63 ftlb.) Transmission-engine connection Hexagon-head bolt No. 3 M12 x 90 in graphic Tightening torque 85 Nm (63 ftlb.) Transmission/engine connection Internal-serration screw no. 4 in figure M10 x 50 Tightening torque 45 Nm (33 ftlb.) Transmission-engine connection Nut No. 5 M10 in graphic Tightening torque 45 Nm (33 ftlb.) Transmission-engine connection Hexagon-head bolt No. 6 M12 x 70 in graphic Tightening torque 85 Nm (63 ftlb.) Transmission-engine connection Hexagon-head bolt No. 7 M12 x 90 in graphic Tightening torque 85 Nm (63 ftlb.) Information
In order to install the right-hand transmission support with hydraulic mount, the automatic transmission must be pushed towards the left.
- Install right transmission support with hydraulic mount.
Location Description Type Basic value Tolerance 1 Tolerance 2 Transmission support Fastening screws between transmission support and transmission Tightening torque 65 Nm (48 ftlb.) Hydraulic mount Fastening screws between hydraulic mount and body Tightening torque 33 Nm (24 ftlb.) - Install left transmission support with hydraulic mount.
Location Description Type Basic value Tolerance 1 Tolerance 2 Transmission support Fastening screws between transmission support and transmission Tightening torque 65 Nm (48 ftlb.) Hydraulic mount Fastening screws between hydraulic mount and body Tightening torque 33 Nm (24 ftlb.) - Remove transmission jack.
