Removing Tiptronic Rocker Switch

The graphics below show how to remove the left rocker switch. The description also applies for the right rocker switch.

1. Unscrew fastening screw for rocker switch.

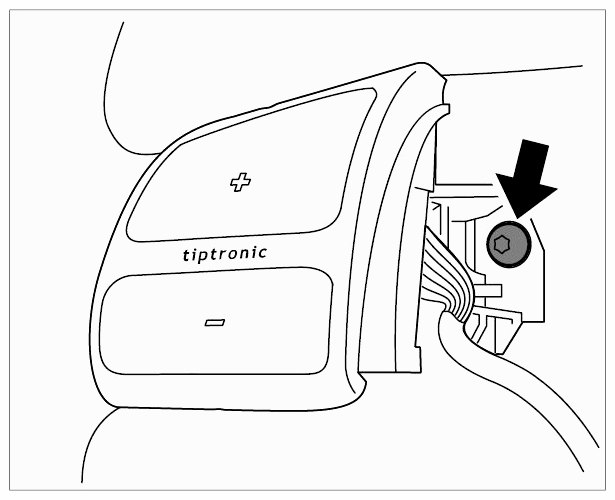

   Fig 1: Locating Rocker Switch Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Carefully lever out rocker switch using a screwdriver. Watch out for the washer -A-  when levering out the rocker switch.

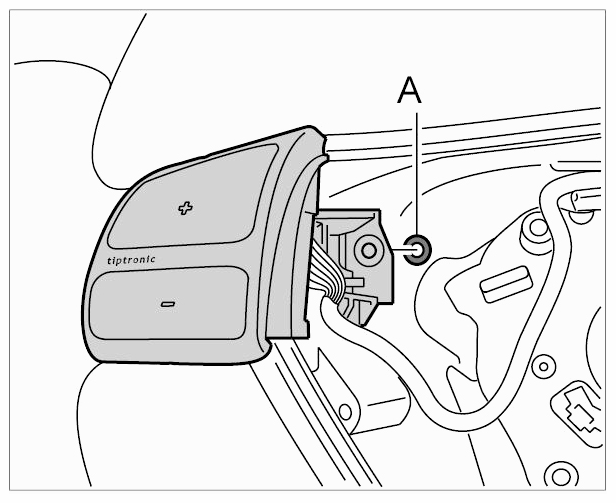

   Fig 2: Identifying Rocker Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unlock and disconnect the electric plug connection.

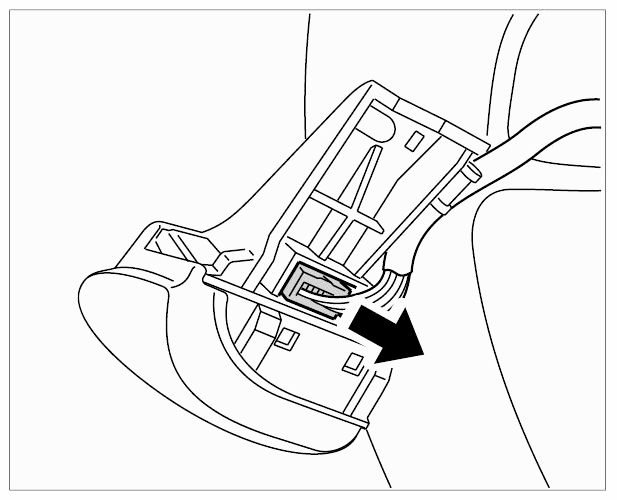

   Fig 3: Removing Electric Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
