Installing Tiptronic Rocker Switch

The graphics below show how to install the left rocker switch. The description also applies for the right rocker switch.

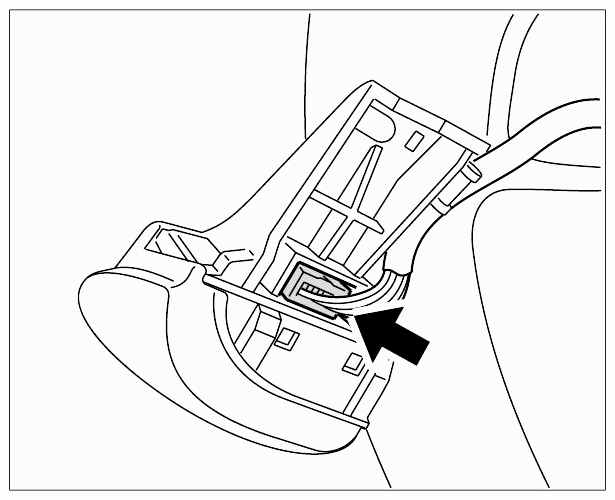

1. Insert electric plug connection into rocker switch until the plug engages firmly.
   Fig 1: Inserting Electric Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

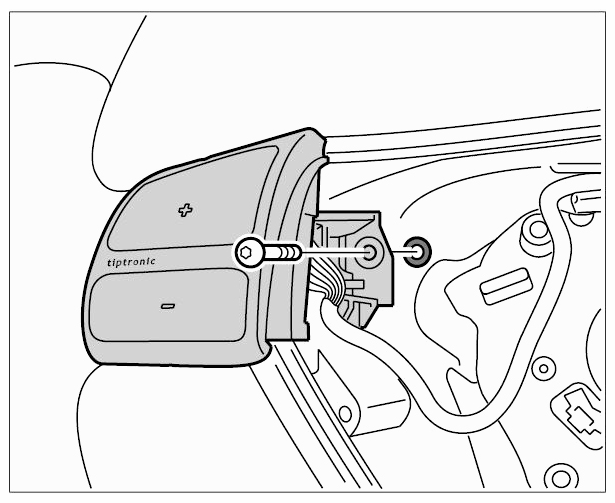

2. Insert rocker switch and washer into steering wheel and screw in fastening screw.
   Fig 2: Identifying Rocker Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Fastening screw	Fastening screw between rocker switch and steering wheel	Tightening torque	3 Nm (2 ftlb.)
