Installing Selector Lever Cable: Notes

WARNING: This page is about a different variant/trim than selected.

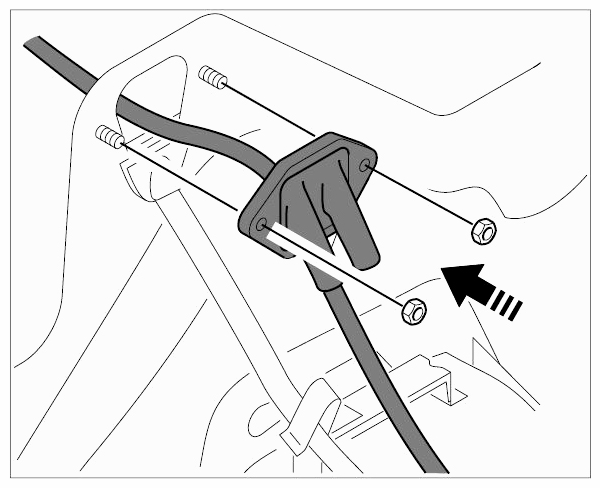

Push selector lever cable through the bulkhead panel from the interior of the vehicle and fit fastening nuts.

Fig 1: Installing Bulkhead

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Shift and selector cables to bulkhead	Fastening nuts between shift and selector cables and bulkhead	Tightening torque	7.5 ftlb.

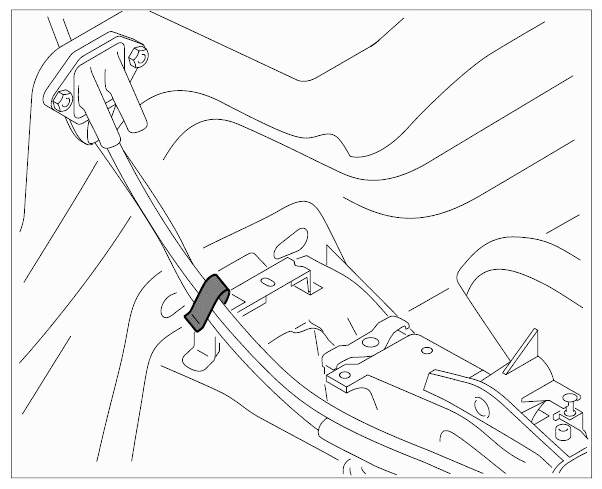

Engage selector lever cable in support.

Fig 2: Identifying Selector Lever Cable Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

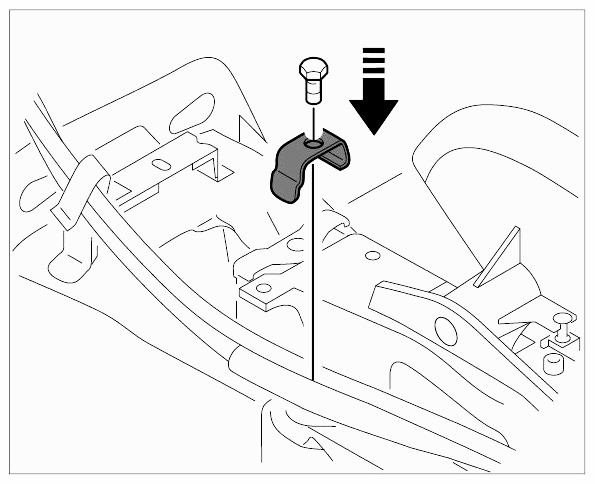

Fit support for selector lever cable.

Fig 3: Fitting Support For Selector Lever Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Support for shift and selector cables	Fastening screw between shift and selector cables and body	Tightening torque	7.5 ftlb.

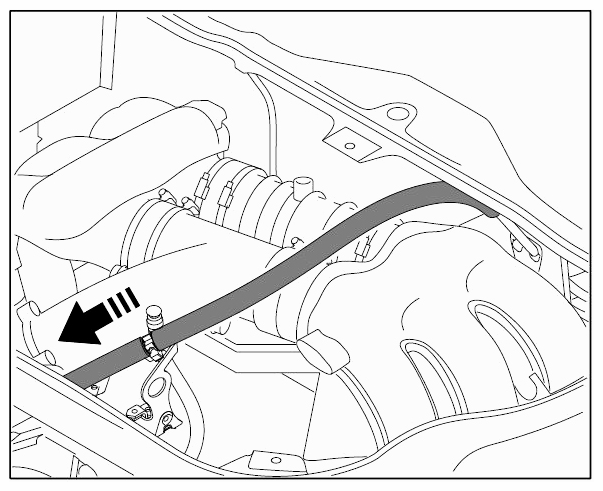

Push end of selector lever cable - at transmission side - into the opening in the engine compartment lid.

Fig 4: Installing Selector Lever Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

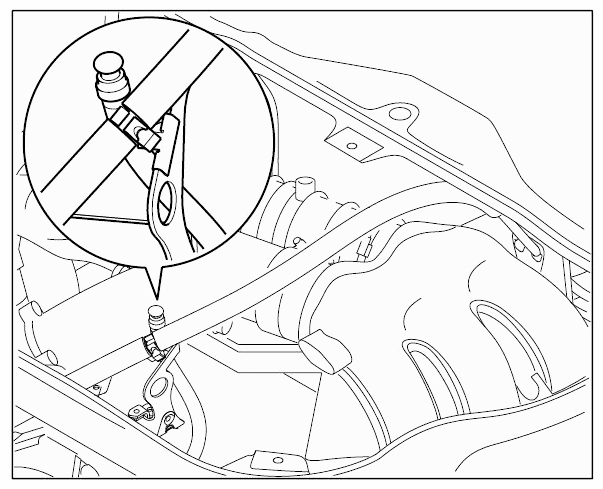

Clip in selector lever cable.

Fig 5: Identifying Selector Lever Cable Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
