Securing Wire Harness For SDARS Antenna

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press in wire harness for SDARS antenna -3-  at the fastening part -4-  and lock it -arrow A-  .
  2. Connect plug connection for SDARS antenna -1- (-arrows B-)  until it engages securely.
  3. Clip plug connection for SDARS antenna -1-  into the bracket -2- (-arrow C-).

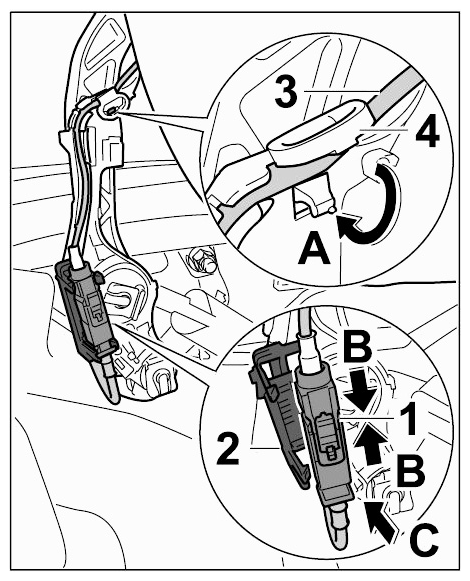

    4. Fig 1: Securing SDARS Antenna
    G09590513Courtesy of PORSCHE CARS NORTH AMERICA, INC.
