Adjusting The Adjusting Eccentric For Locating Peg

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

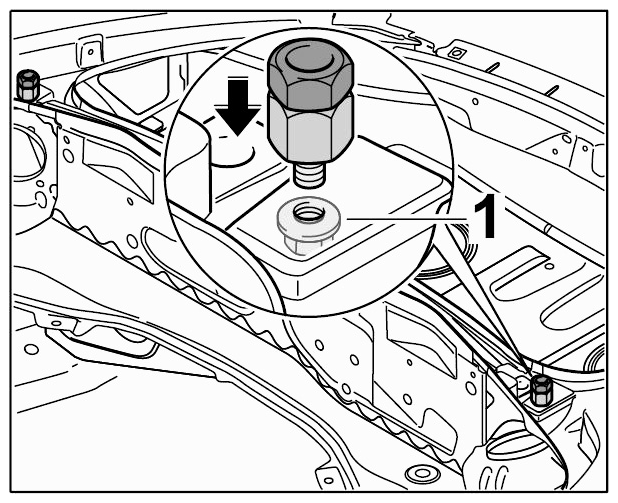

Fig 1: Installation Position Of Adjusting Eccentric
G09590507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position adjusting eccentric on the body and tighten with the fastening nut 1. → Tightening torque: 9.7 Nm (7.0 ftlb.)
  2. Adjust upper part of adjusting eccentric 2 to match contour of side panel by screwing lower part of adjusting eccentric 3 in or out in direction of travel. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)

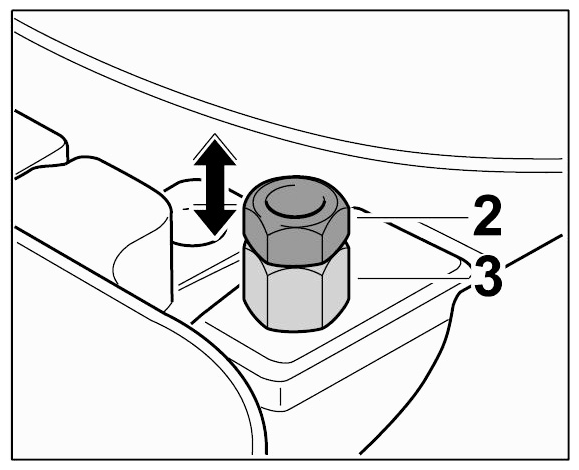

    Fig 2: Adjusting Eccentric For Peg
    G09590508Courtesy of PORSCHE CARS NORTH AMERICA, INC.
