Removing Microswitch For Roof

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Removal Position Of Microswitch For Roof
G09590466Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen circlips -1-  (by turning them -arrow a-  with a small screwdriver -2-  ) at the front lock -4-  and lift them up and off -arrow A-  .
  2. Remove microswitch for roof -3-  from front lock -4-  by pulling it upwards -arrow B-  .

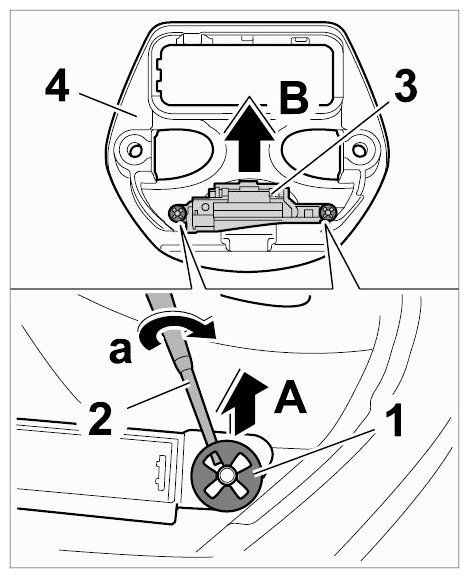

    3. Fig 2: Removing Microswitch
    G09590467Courtesy of PORSCHE CARS NORTH AMERICA, INC.
