Installing Microswitch For Roof

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert microswitch for roof -1-  from above -arrow A-  into the front lock -2-  .

    Information

    New circlips must always be used when securing the microswitch.

  2. Fit circlips -3-  from above -arrow B-  and press in until they connect fully with the microswitch for roof -1-  .

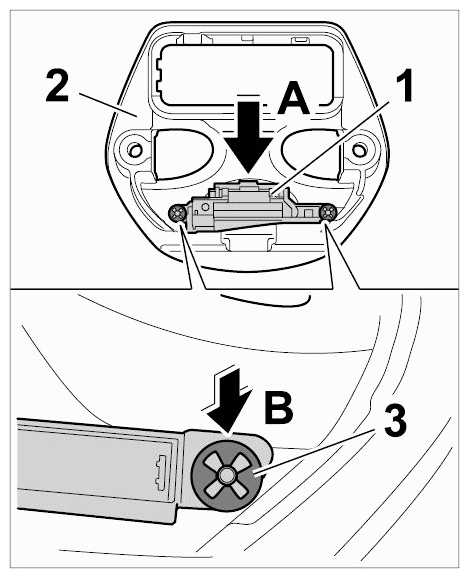

    3. Fig 1: Installing Microswitch
    G09590468Courtesy of PORSCHE CARS NORTH AMERICA, INC.
