Installing Tension Rope

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull tension rope -1-  at the sides into the hood covering -2- (-arrow A-  ) and align it.
  2. Press the tension rope -1-  all the way into the profile -3-  of the hood covering -2- (-arrow B-).
  3. Check that the tension rope -1-  is seated securely and can move freely.

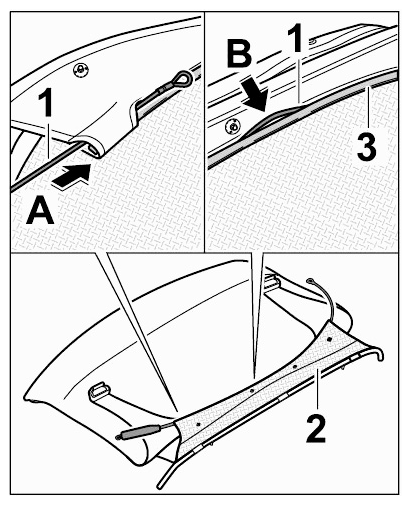

    4. Fig 1: Installing Tension Rope
    G09590437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
