Preliminary Work

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace the spare parts contained in the "convertible-top covering" scope of parts!
The convertible-top covering must be replaced at a room temperature of at least 15 degrees Celsius (59 Fahrenheit)!

Remove right and left side trim panels. → REMOVING SIDE TRIM PANEL
Remove seal for convertible-top compartment lid. → Removing Seal For Convertible-Top Compartment Lid
Remove roof liner. → Removing Roof Liner 610919 REMOVING AND INSTALLING ROOF LINER
Open convertible top to the dimension - X= 50 cm-.

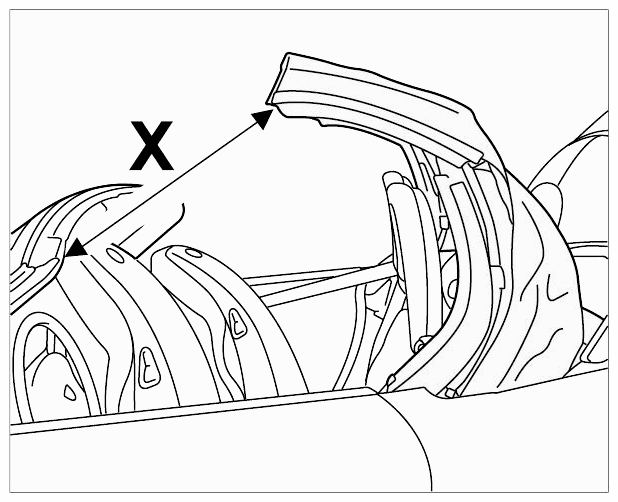

Fig 1: Identifying Convertible Top Service Position Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
