Fastening Hood Covering On The Inside

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

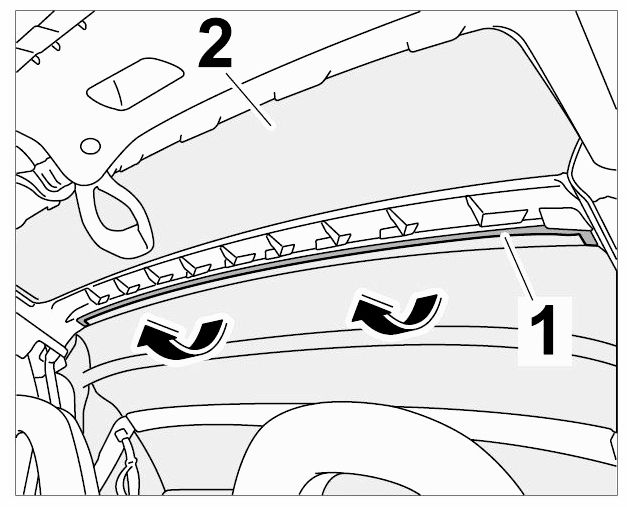

Fig 1: Identifying Installation Position Of Hood Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Close the hood.
Tighten the hood covering -2- and secure the Velcro fastener -1- in the groove on the rear roof frame.

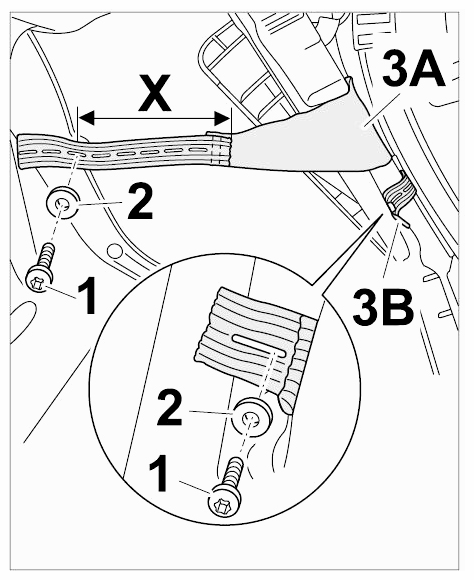

Fig 2: Tightening Hood Covering On Inside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull fitting aid -3A- inwards and when the dimension -X= 85 mm- is reached, screw in the fastening screw -1- and washer -2- . Tightening torque → Tightening torque: 2.8 Nm (2 ftlb.)
Position tightening strip -3B- with the fourth complete slit from the seam into the hole on the main folding top bow and screw in the fastening screw -1- and washer -2- . → Tightening torque: 1.8 Nm (1.5 ftlb.)

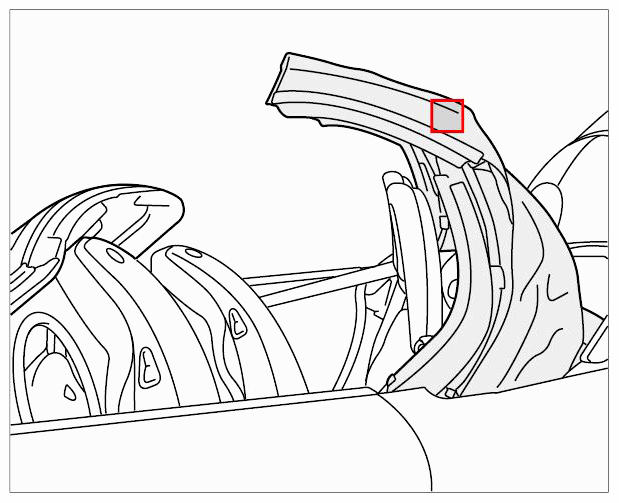

Fig 3: Identifying Fastening Tightening Strip And Fitting Aid Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the folding aid at the side is routed between the corner bow and the hood covering.
Pull the cord -1- back and guide it through the hood support.
Feed in the cord -1- at the key ring -2- on the hood covering -3- .

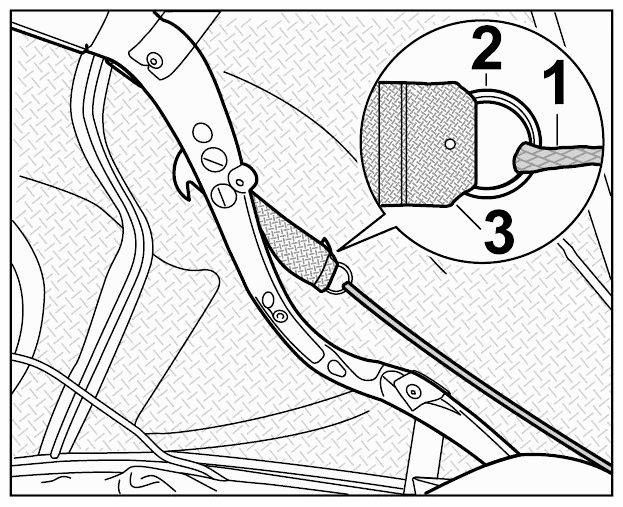

Fig 4: Identifying Hood Covering Key Ring And Cord

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
