Installing Roof Liner: Notes

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Pull tightening strip -2- of roof liner -1- into the main folding top bow -3- and position it centrally and at the sides.

Fig 1: Installing Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

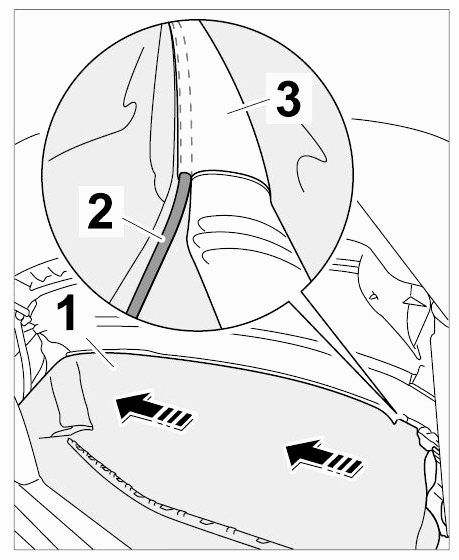

Position roof liner -2- centrally on corner bow -3- and press into surrounding section -1- .

Fig 2: Fastening Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

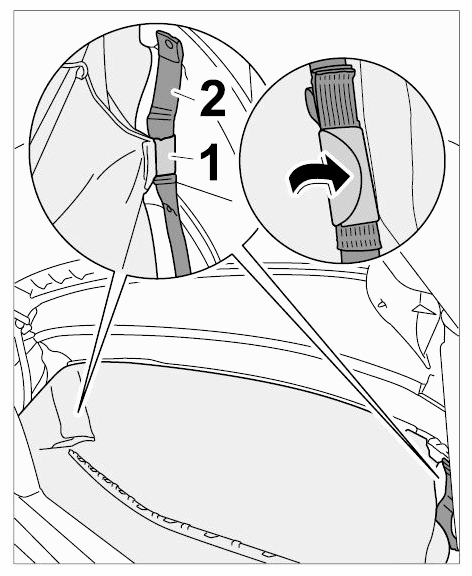

Place Velcro fastener -1- around the tension strap -2- and press together (right and left).

Fig 3: Securing Velcro Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

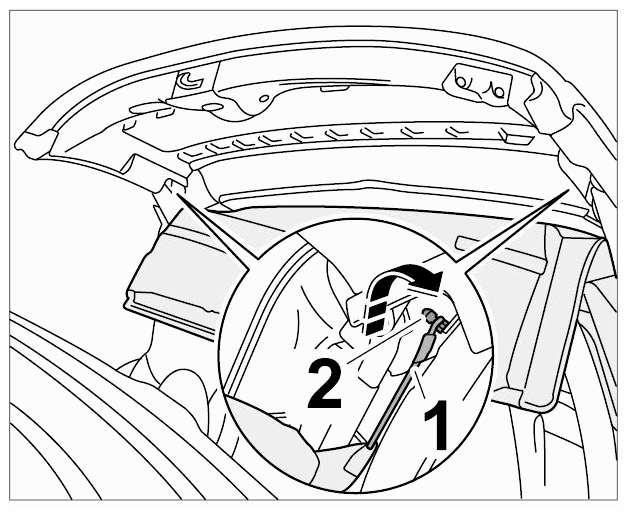

Engage cord -1- of roof liner at the buffer -2- on the left and right B-pillar.

Fig 4: Engaging Roof Liner Cord
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

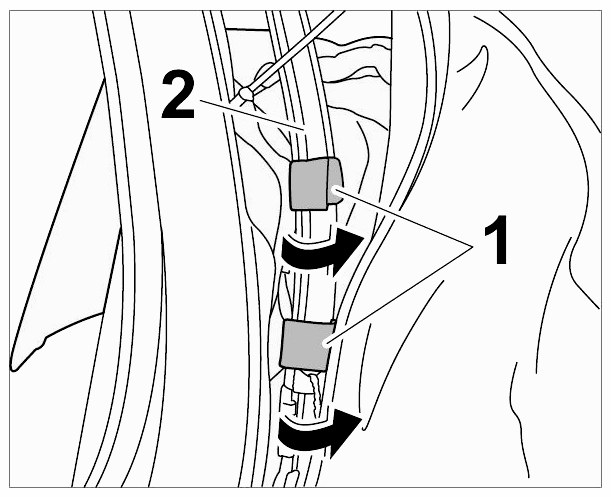

Secure Velcro fasteners -1- on the push rod -2- at the left and right. Position the tab up to the seam of the Velcro strip and press the Velcro firmly together.

Fig 5: Securing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

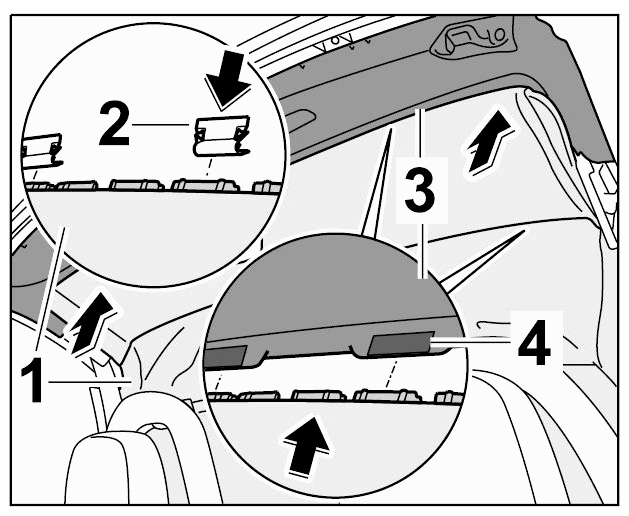

Always replace clips -2- . Affix adhesive strips -4- on the bar of the roof frame. Clip roof liner -1- upwards at the Centre and front onto the bar of the roof frame -3- , starting from the inside.

Fig 6: Locating Roof Frame Clips And Adhesive Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
