Installing Front Lock

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push on connector -1-  for roof microswitch -2- -arrow-  .

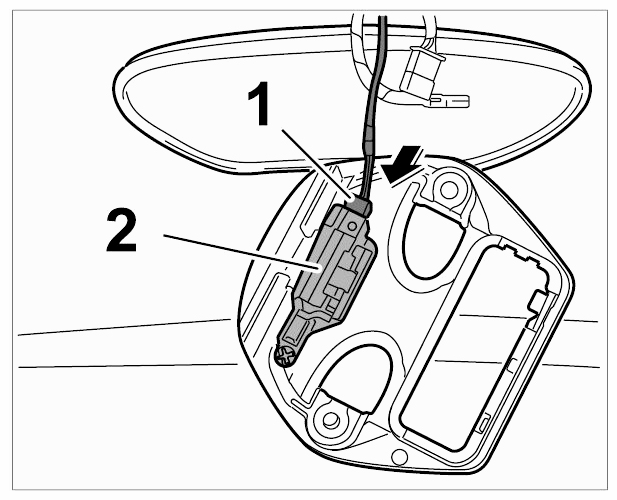

    Fig 1: Pushing Roof Microswitch Connector
    G09590226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push the electric connecting lines for the interior light and the garage door opener control unit from above through the assembly openings on the front lock.

    Information

    When fitting the front lock make sure the electric connecting lines are laid so that they are not trapped.

  3. Mount front lock -1-  from below -arrow-  on windscreen frame.
  4. Tighten front lock with the two fastening screws -2-  . → Tightening torque: 7.5 ftlb.

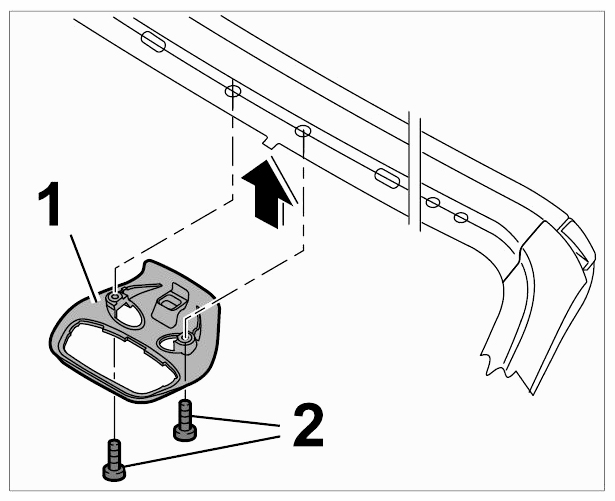

    5. Fig 2: Locating Front Lock And Mounting Screw
    G09590227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
