Adjusting The Hardtop

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

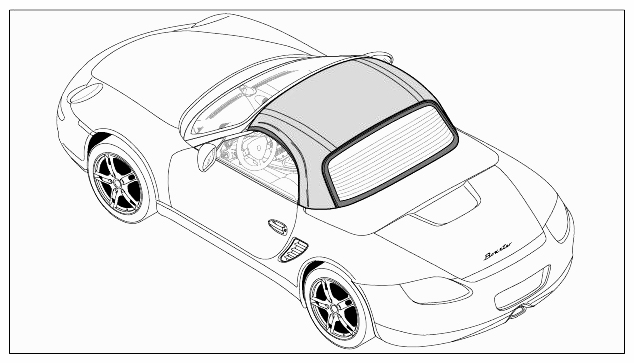

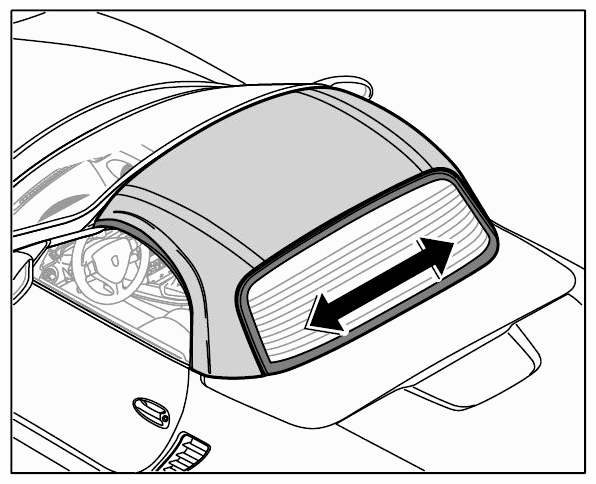

Fig 1: Identifying Adjustable Hardtop

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove trim panels on the rear hardtop locks.

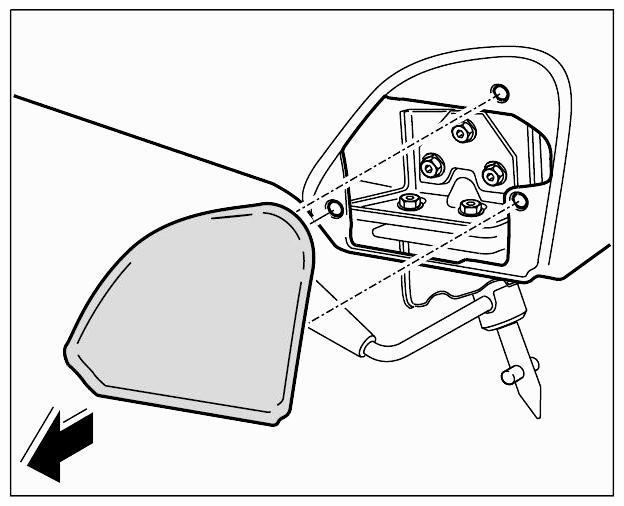

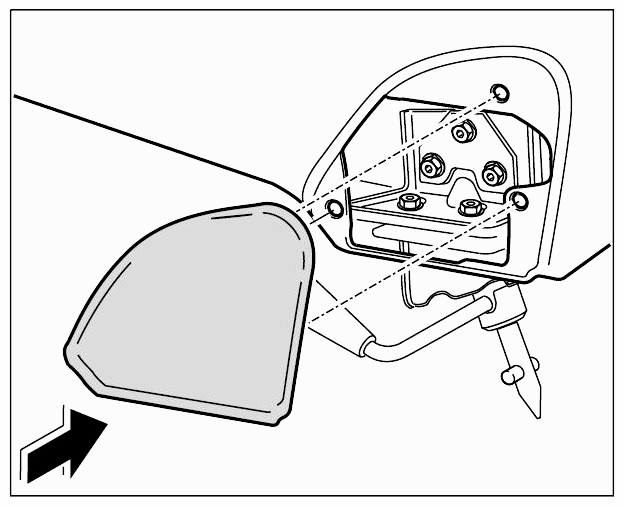

Fig 2: Removing Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen rear hardtop locks.
1. 2.1. Loosen fastening screws -1- and -2- on the mounting plate by one turn of the thread. Unlock locking element (installation position).

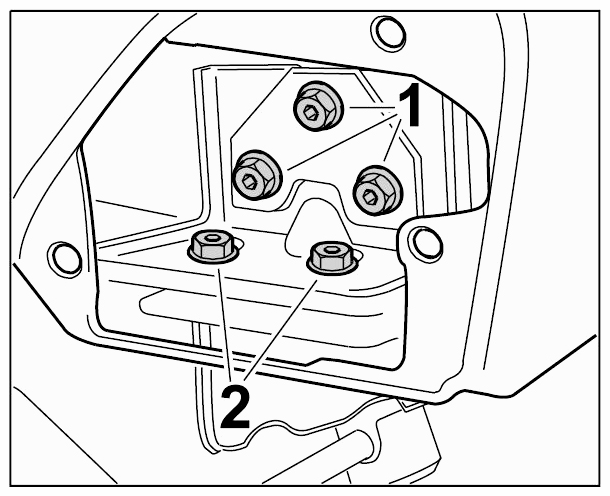

  Fig 3: Identifying Rear Hardtop Locks Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laterally align the hardtop.
1. 3.1. Shift hardtop sideways along the rear locks until the gap -Dimension A- runs parallel to the windscreen frame. → Adjustment dimension: 5.5 mm+/-1.0 mm

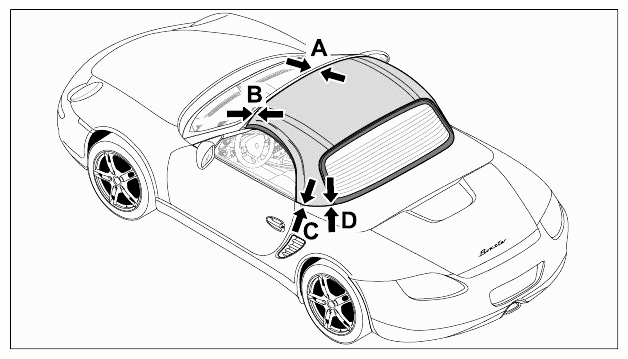

  Fig 4: Identifying Hardtop Installation Positions
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Laterally Aligning Hardtop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set the lateral offset of the hardtop at the front.
1. 4.1. The offset between the hardtop and the cowl panel at the front -Dimension B- is set by the convertible top pin housing and must not be changed. The convertible top pin housing is set with respect to the convertible top, see → 610115 ADJUSTING CABRIOLET CONVERTIBLE TOP . → Check dimension: 2 mm+/- 1.0 mm

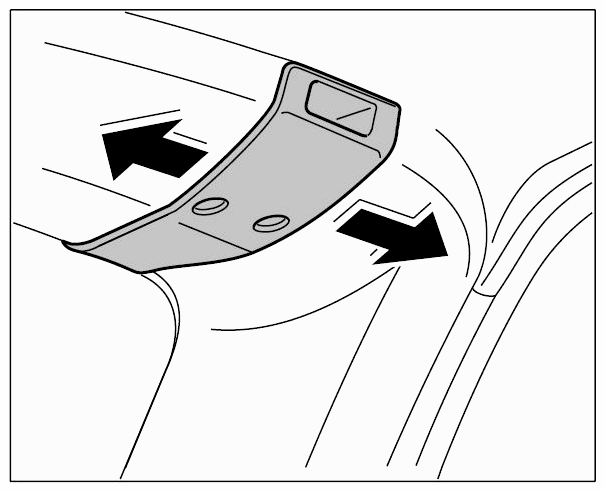

  Fig 6: Adjusting Front Lateral Offset
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect mounting plate with the hardtop lock.
1. 5.1. Connect mounting plate with the hardtop lock and the fastening screws -2- .
Set gap dimension between hardtop and convertible top compartment lid.
1. 6.1. Adjust gap -Dimension D and C- by shifting the hardtop on both sides of the vehicle. → Adjustment dimension: 5.5 mm+/-3.5 mm → Adjustment dimension: 5.5 mm+/-3.5 mm
2. 6.2. Screw down mounting plate with the fastening screws -1- and tighten to the specified tightening torque. → Tightening torque: 10 Nm (7.5 ftlb.)

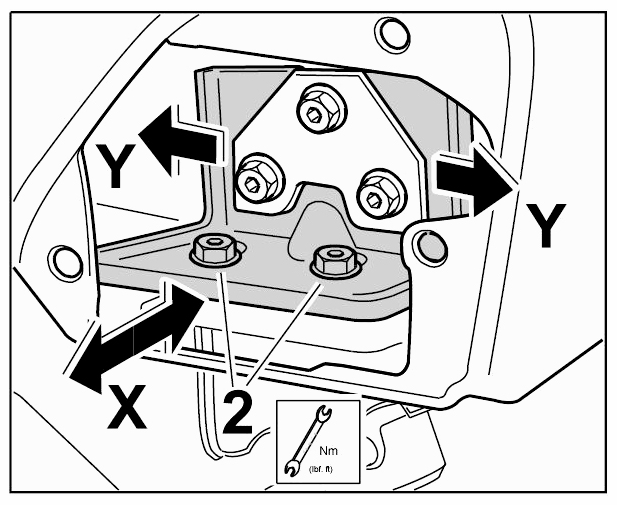

  Fig 7: Laterally Aligning Hardtop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

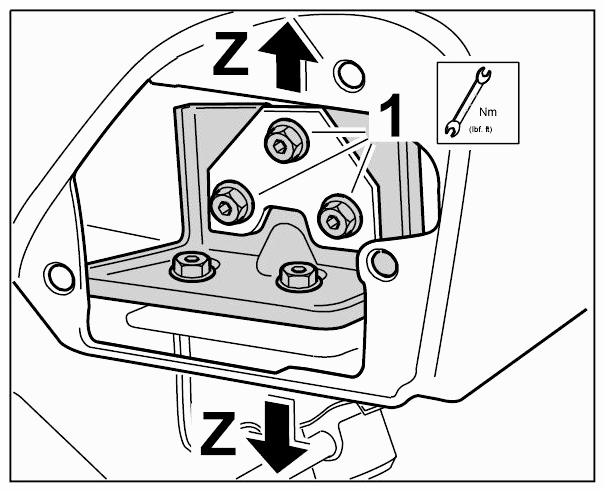

  Fig 8: Aligning Height Of Hardtop
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check for smooth operation and freedom from leaks; adjust the channel strips on the hardtop for the side window if necessary.
1. 7.1. Close side windows and check position of the side windows in relation to the hardtop, see also: → 644019 REMOVING AND INSTALLING FRONT DOOR WINDOW
2. 7.2. Adjust retaining strip from hardtop to side window, if necessary.
  Adjusting the channel strips:

  Loosen fastening screws -3- and move retaining strip -2- .

  Tighten fastening screws -3- . Press upper seal -4- into the profile of the retaining strip -5- .

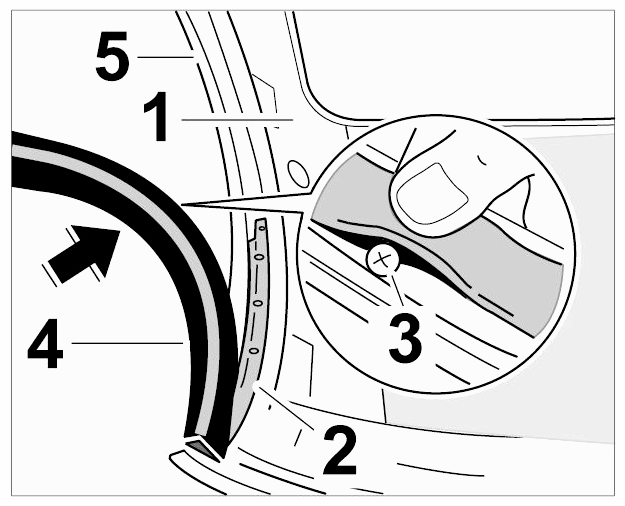

  Fig 9: Fitting Seal At Sides Of Roof Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 7.3. If the windows touch the hardtop at their end position, increase the gap at the hardtop (towards the max. value). If the side windows leak, decrease the gap at the hardtop at the rear (towards the min. value).
Install trim panels for the rear hardtop locks.
1. 8.1. Clip in the trim panel.

  Fig 10: Installing Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
