Removing Front Roof Trim Panel

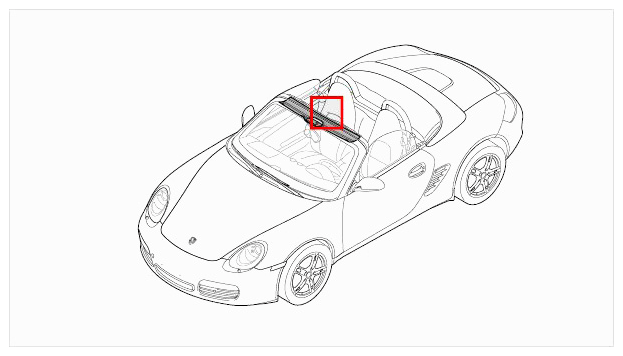

Fig 1: Identifying Removal Position Of Front Roof Trim Panel
G09591971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove convertible-top peg mount -2-  downwards -arrow-  .

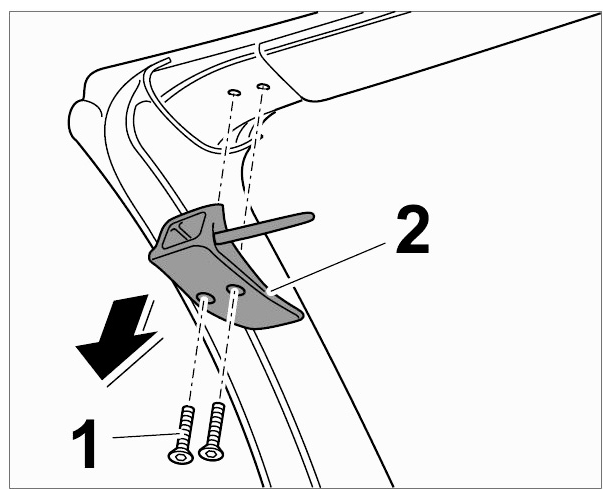

    Fig 2: Removing Convertible-Top Peg Mount
    G09591972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip front roof trim panel and remove by pulling downwards -arrows-  .

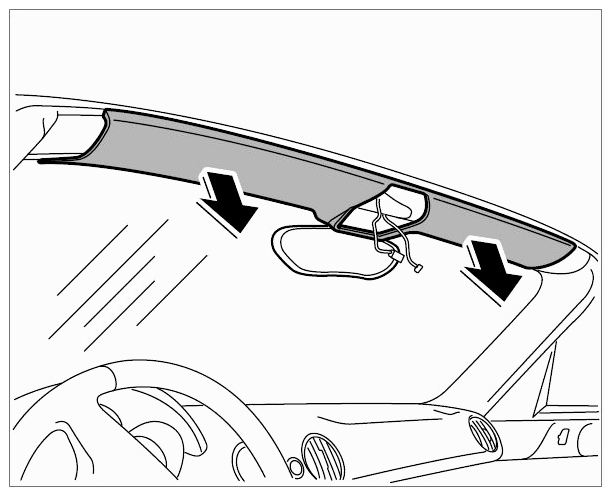

    Fig 3: Removing Front Roof Trim Panel
    G09591973Courtesy of PORSCHE CARS NORTH AMERICA, INC.
