Preparing Connection Areas Of Body For Installing Body Front Section

Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

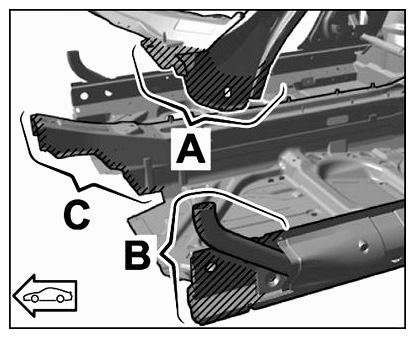

Fig 1: Identifying Body Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean undersealing, adhesive residue and paint off the body connecting flanges at the left and right in the marked areas -A, B, C- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

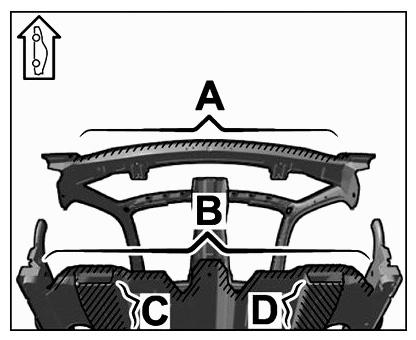

Fig 2: Identifying Body Front Section Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 3.1. Coat all spot-weld flange areas with zinc powder paint.
