Removing Upper Cowl Panel Cover

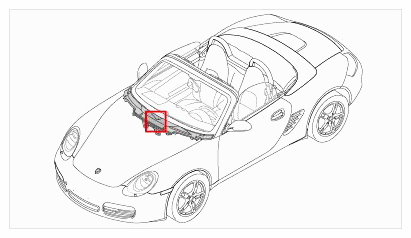

Fig 1: Identifying Installation Position Of Cowl Panel Cover
G09588464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -1-  . Remove clamping bush -2-  , spring element -3-  and sliding plate -4-  in upward direction.
  2. Unscrew fastening screw -5-  in the centre.

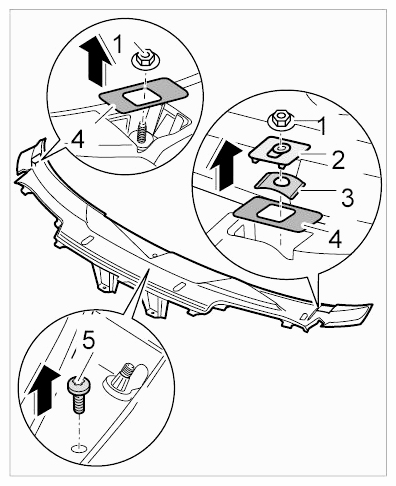

    3. Fig 2: Removing Upper Cowl Panel Cover
    G09588465Courtesy of PORSCHE CARS NORTH AMERICA, INC.
