Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission. → Removing Transmission
  2. Tighten the transmission using engine support 9589  or engine and gear support VW 540  at the assembly support.

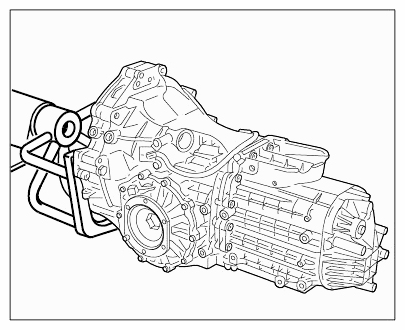

    Fig 1: Identifying Transmission Assembly Support
    G09586748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Drain transmission oil. → 340155 CHANGING TRANSMISSION OIL
