Removing Transmission Housing
WARNING: This page is about a different variant/trim than selected.

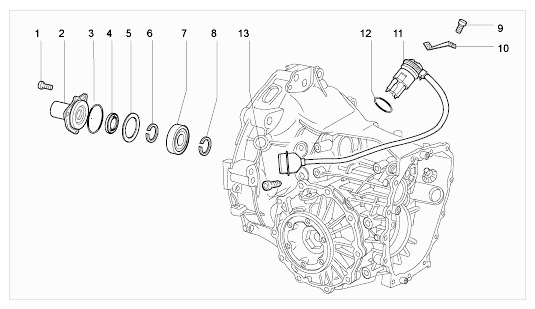

| No. | Designation | Qty. | Removal |
|---|---|---|---|
| 1 | Torx screw | 3 | Already removed during preliminary work. |
| 2 | Guide sleeve | 1 | Already removed during preliminary work. |
| 3 | O-ring | 1 | Already removed during preliminary work. |
| 4 | Shaft seal | 1 | Already removed during preliminary work. |
| 5 | Cup spring | 1 | |
| 6 | Circlip | 1 | Note the thickness for re-installation (must not be interchanged). |
| 7 | Ball bearing | 1 | Pull out with puller v.a.g. 1582 and grip piece v.a.g.1582/2 . |
| 8 | Circlip | 1 | Note the thickness for re-installation (must not be interchanged). |
| 9 | Hexagon-head bolt | 1 | |
| 10 | Tab washer | 1 | |
| 11 | Reversing-light switch | 1 | |
| 12 | O-ring | 1 | |
| 13 | Torx screw | 1 |
