Removal Instructions For Transmission Cover

WARNING: This page is about a different variant/trim than selected.
  1. Pull out drive shaft -A-  , output shaft -B-  , deflection rod -C-  , shift rods -D-  and shift fork -E-  together.

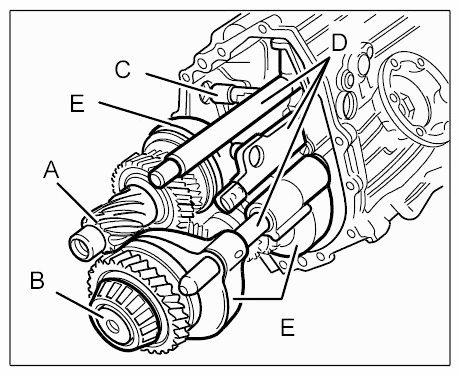

    Fig 1: Identifying Gear Set With Gearshift
    G09586635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
