Fitting Transmission Housing
WARNING: This page is about a different variant/trim than selected.

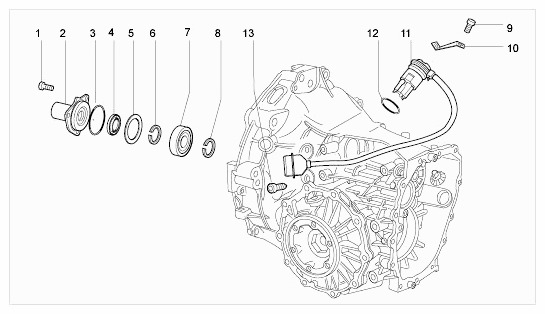

| No. | Designation | Qty. | Fitting |
|---|---|---|---|
| 1 | Torx screw | 3 | Fitted during subsequent work. |
| 2 | Guide sleeve | 1 | Fitted during subsequent work. |
| 3 | O-ring | 1 | Fitted during subsequent work. |
| 4 | Shaft seal | 2 | Fitted during subsequent work. |
| 5 | Cup spring | 1 | Insert with the smaller diameter (curved side) towards the guide sleeve. |
| 6 | Circlip | 1 | If ball bearing No. 7, the drive shaft or the transmission housing is replaced, calculate the thickness again. → 354015 ADJUSTING THE DRIVE SHAFT |
| 7 | Ball bearing | 1 | With the open side of the plastic cage pointing towards the guide sleeve, press in with the press-in device 3235 . |
| 8 | Circlip | 1 | If ball bearing No. 7, the drive shaft or the transmission housing is replaced, calculate the thickness again. → 354015 ADJUSTING THE DRIVE SHAFT |
| 9 | Hexagon-head bolt | 1 | → Tightening torque: 25 Nm (19 ftlb.) |
| 10 | Tab washer | 1 | |
| 11 | Reversing-light switch | 1 | Insert in the correct position. |
| 12 | O-ring | 1 | Always replace, and lightly oil. |
| 13 | Torx screw | 1 | → Tightening torque: 10 Nm (7.5 ftlb.) |
