Fitting Transmission Cover
WARNING: This page is about a different variant/trim than selected.

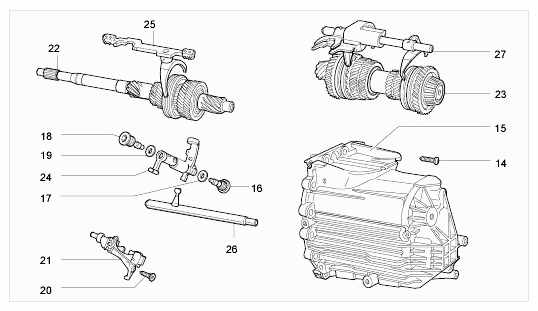

| No. | Designation | Qty. | Fitting |
|---|---|---|---|
| 14 | Torx screw | 14 | → Tightening torque: 25 Nm (19 ftlb.) |
| 15 | Transmission cover | 1 | Apply sealing material Loctite 574 to the contact surfaces and tighten Torx screws -14- . |
| 16 | Torx screw | 1 | → Tightening torque: 40 Nm (30 ftlb.) |
| 17 | Spacer | 1 | |
| 18 | Torx screw | 1 | → Tightening torque: 40 Nm (30 ftlb.) |
| 19 | Spacer | 1 | |
| 20 | Torx screw with collar | 1 | → Tightening torque: 25 Nm (19 ftlb.) |
| 21 | Switch interlock | 1 | |
| 22 | Drive shaft | 1 | |
| 23 | Output shaft | 1 | |
| 24 | Relay shaft | 1 | |
| 25 | Shift rod and shift fork for 3rd and 4th gear | 1 | |
| 26 | Interior shift rod | 1 | |
| 27 | Shift rod with shift fork for 1st, 2nd, 5th, and reverse gear | 1 | Only replace shift rod for 5th and reverse gear complete with shift fork and driver. |
