Fitting Accessories

WARNING: This page is about a different variant/trim than selected.
  1. Fit mount for exhaust system on transmission.

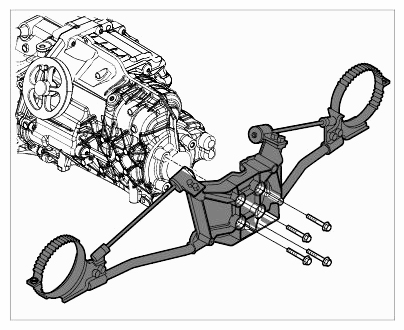

    Fig 1: Identifying Exhaust System Mounting Bolts
    G09586620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Exhaust system mount Fastening screws between transmission housing mount Tightening torque 45 Nm (33 ftlb.)
  2. Push on electric connector for reverse gear switch.

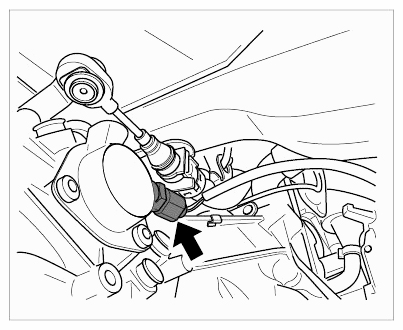

    Fig 2: Locating Reversing Light Switch
    G09586621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Before installing the clutch slave cylinder, grease the push rod with Kluberalfa in the area of the release-lever ball socket. Part No. 000.043.304.02 (50g tube).

  3. Insert clutch slave cylinder in transmission opening and screw in fastening screw.

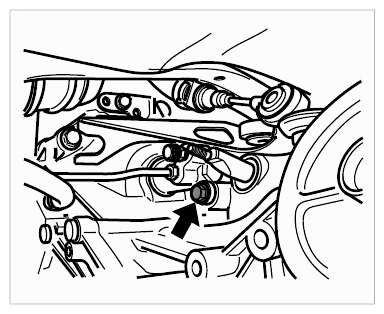

    Fig 3: Locating Clutch Slave Cylinder Screw
    G09586622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Clutch slave cylinder Fastening screws between transmission housing and clutch slave cylinder Tightening torque 23 Nm (17 ftlb.)
  4. Fit the external shift mechanism and tighten nut.

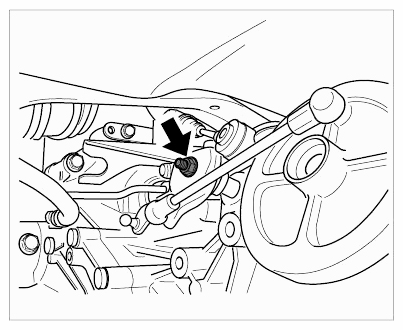

    Fig 4: Locating External Shift Mechanism Fastening Nut
    G09586623Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    External shift mechanism Fastening nut between shifting shaft and external shift mechanism Tightening torque 23 Nm (17 ftlb.)
