Removing Transmission: Dismantling

WARNING: This page is about a different variant/trim than selected.

Loosen fastening screws between anti-roll bar and rear axle carrier side panel and fold anti-roll bar forward.

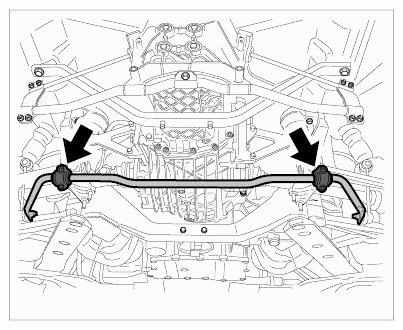

Fig 1: Locating Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Protect the drive shafts from mechanical damage.
Remove drive shafts on transmission side. To do this, unscrew the six Allen screws joining each drive shaft and transmission flange. Counter at the brake disc or activate the parking brake to avoid simultaneous turning.

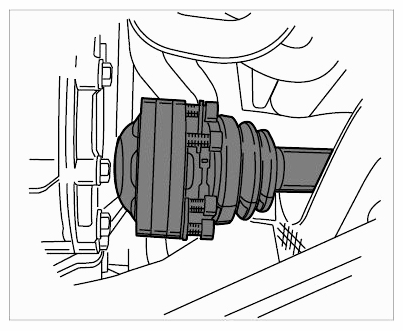

Fig 2: Identifying Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off electric connector for back-up light switch.

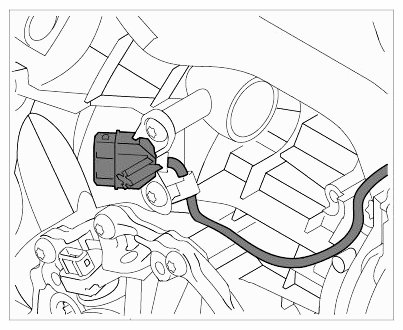

Fig 3: Identifying Reversing-Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lever off shift cable (with grey sealing cap) -1- and selector cable (with blue sealing cap) -2- from ball pin and disengage from supports.

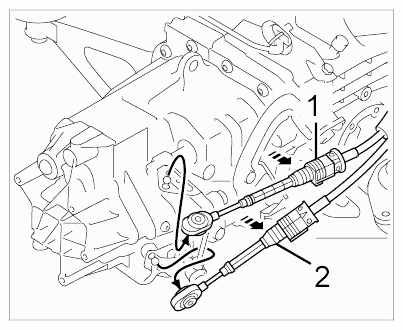

Fig 4: Removing Shift And Selector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
