Detaching Shift And Selector Cables Inside Vehicle

WARNING: This page is about a different variant/trim than selected.

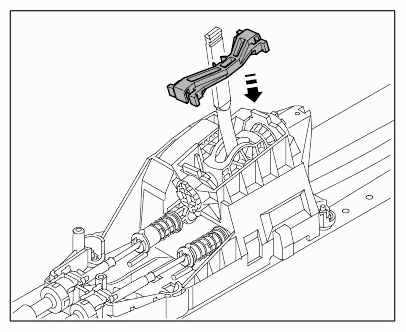

Locking bridge 9619/1 must be fitted on the gearshift bracket.

Fig 1: Fitting Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

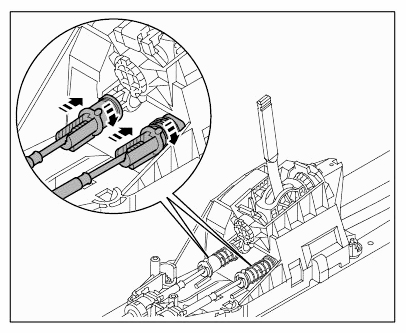

Open bayonet locks at pre selector and shift connections.

Fig 2: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

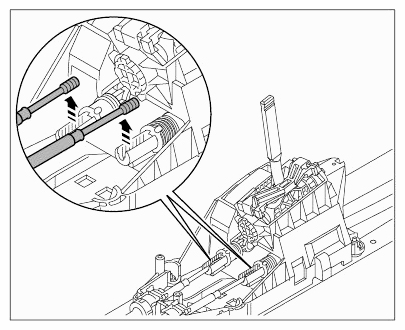

Detach adjustment pins at preselector and shift connections.

Fig 3: Detaching Shift Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

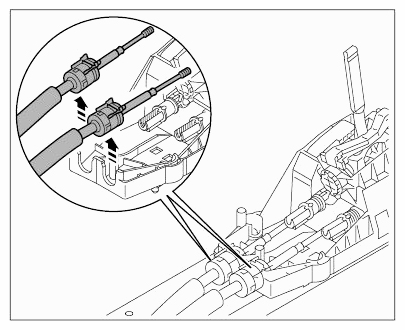

Unclip supports on the gearshift bracket.

Fig 4: Removing Gearshift Bracket Supports
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
