Installing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.

Push shift-lever knob fully onto the shift lever.

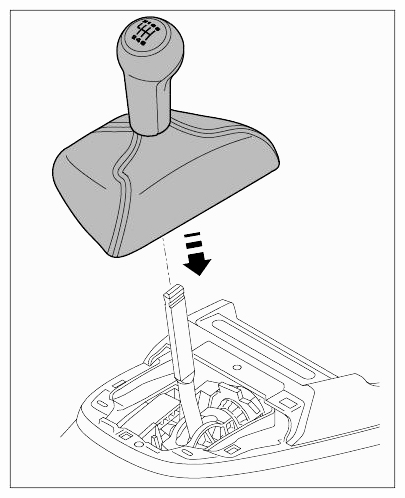

Fig 1: Pushing On Shift-Lever Knob
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn leather sleeve anti-clockwise by 90° as far as it will go.

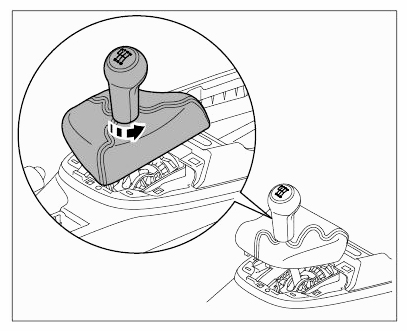

Fig 2: Turning Leather Sleeve Anti-Clockwise
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip retaining frame of the leather sleeve into the Centre console

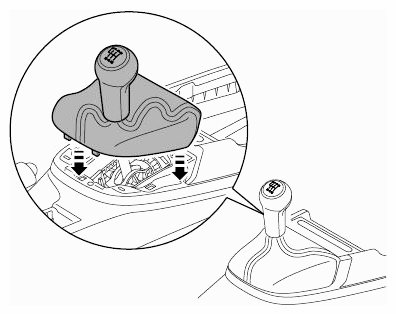

Fig 3: Installing Leather Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
