Installing Convertible Top Gear: Notes

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position convertible top gear -10-  on the studs -11-  and secure with the fastening nuts -9-  . → Tightening torque: 23 Nm (17 ftlb.)

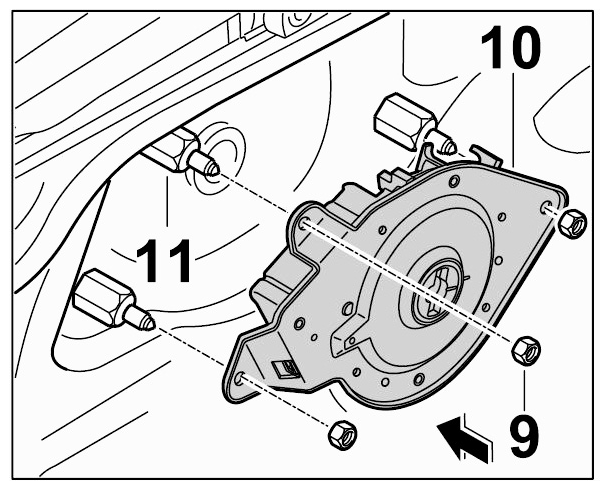

    Fig 1: Installing Convertible Top Gear
    G09590500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
