Assembling Hood Frame: Notes

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Incorrect mounting of roll-over bar with hood frame

Danger of injury
Risk of damage to hood components

→ Secure roll-over bar with hood frame on assembly fixture.

Information

Only use blind rivets from the parts package.

Information

This document describes how to re-assemble the convertible top frame on a roll-over bar that has been removed.
All convertible-top components described here can also be removed and installed on the vehicle except for the main folding top bow and the convertible top support.

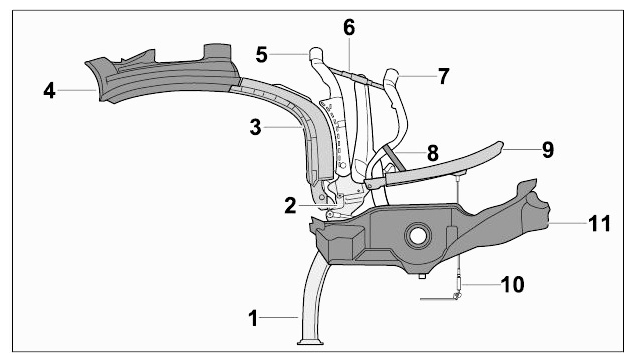

Fig 1: Identifying Hood Frame Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Roll-over bar
2. Hood support
3. B-pillar
4. Roof frame
5. Main bow
6. Top tension strap
7. Corner bow
8. Bottom tension strap
9. Tension bow
10. Tension cable
11. Water drip pan

Fit roll-over bar on assembly fixture. → 6972IN MOUNTING ROLL-OVER BAR ON ASSEMBLY FIXTURE
