Installing Water Drip Pan

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

The double-sided adhesive tape is used to make the water drip pan more secure.

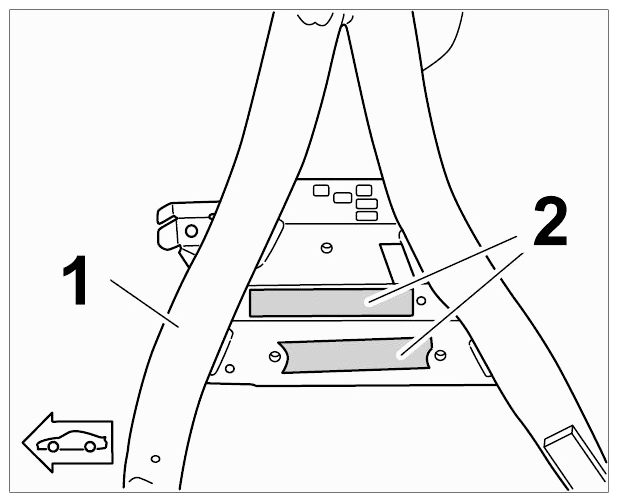

On the roll-over bar -1- , affix two strips of double-sided adhesive tape -2- close to the hood support fastening point.

Fig 1: Identifying Double-Sided Adhesive Tape Applying Area To Hood Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

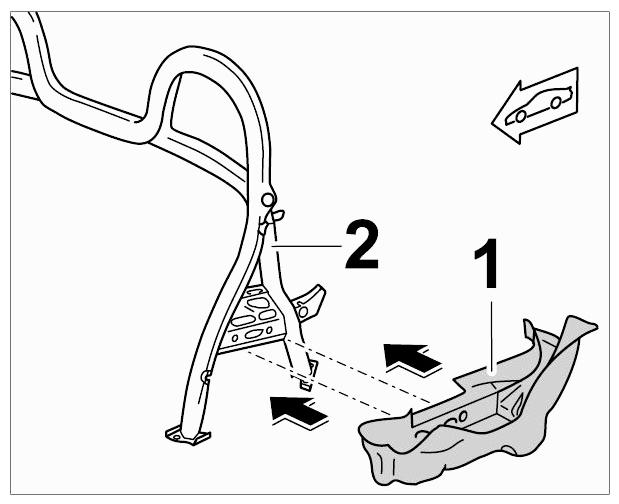

Fit water drip pan -1- on the roll-over bar -2- (-arrows-) and position it at the hole pattern on the hood support fastening point.

Fig 2: Installing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

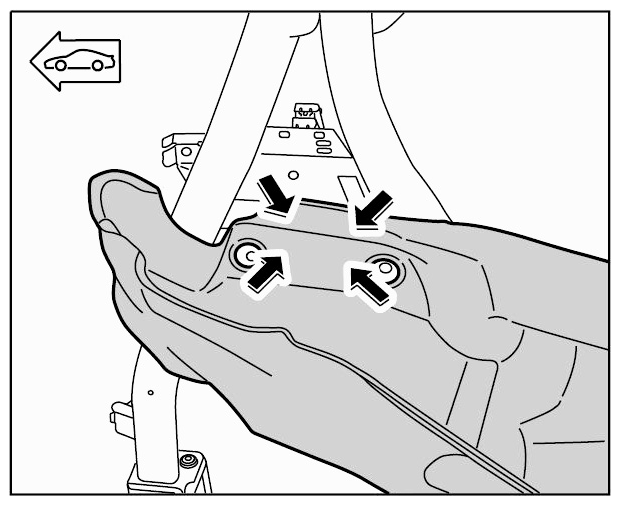

Press water drip pan onto the two strips of double-sided adhesive tape close to the hood support fastening point -arrows- .

Fig 3: Locating Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
