Installing Tension Bow

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

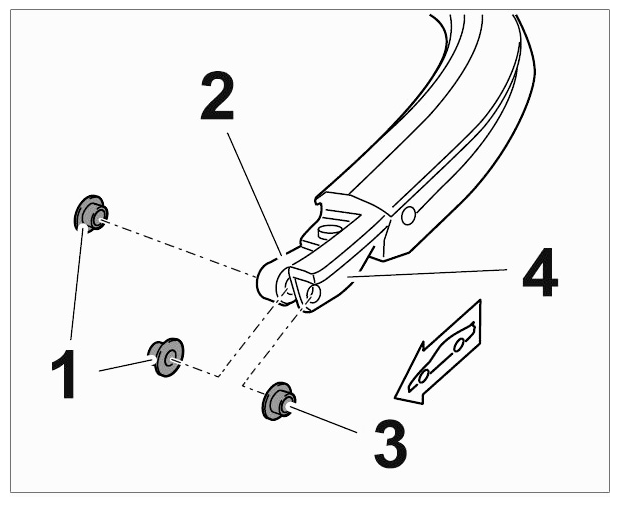

  1. Press Teflon sleeves -1-  at both sides into the bore on the inside of the tension bow -2-  .
  2. Press Teflon sleeve -3-  into the bore on the outside of the tension bow -4-  from inside.
    3. Fig 1: Identifying Teflon Sleeves And Tension Bow
    G09590415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

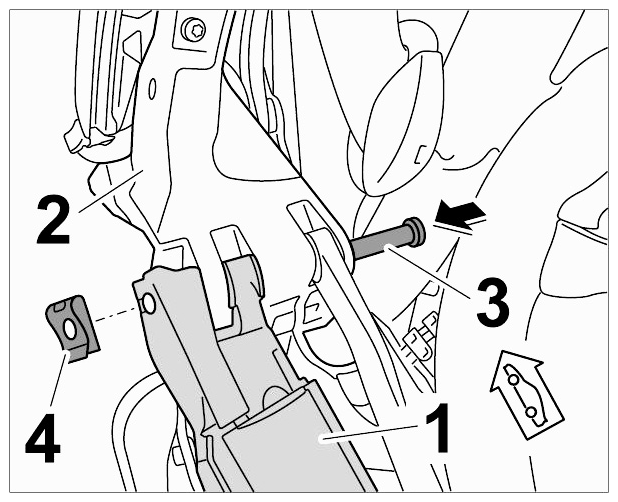

  3. Position tension bow -1-  on convertible top support -2-  and join with the pin -3-  (8 x 75 mm) -arrow-  .
  4. Press retaining clip -4-  into the pin.
    5. Fig 2: Pressing Teflon Sleeve
    G09590416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
