Installing B-Pillar With Control Arm And Lower Lever

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press Teflon sleeves -1-  at both sides into the bore on the convertible top support -2-  .
  2. Position B-pillar -3-  with control arm and lever on convertible top support and join with the pin -4-  (8 x 53 mm) -arrow-  .
  3. Press retaining clip -5-  into the pin.

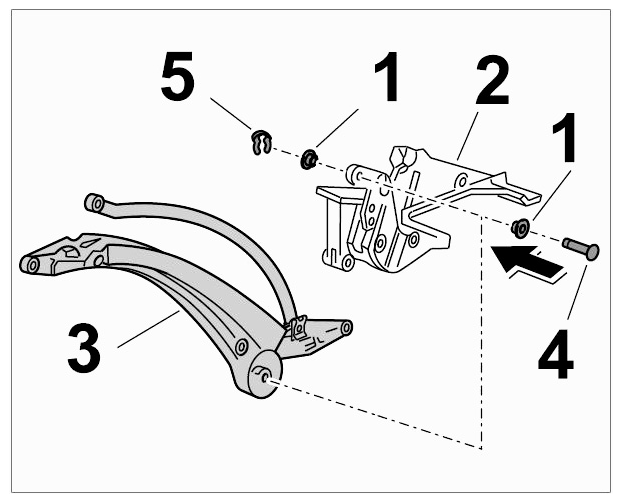

    4. Fig 1: Installing B-Pillar
    G09590406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Place main folding top bow -1-  in a vertical position. Position lower lever -2-  on main folding top bow and join with the pin -3-  (8 x 25 mm) -arrow-  .
  5. Press retaining clip -4-  into the pin.

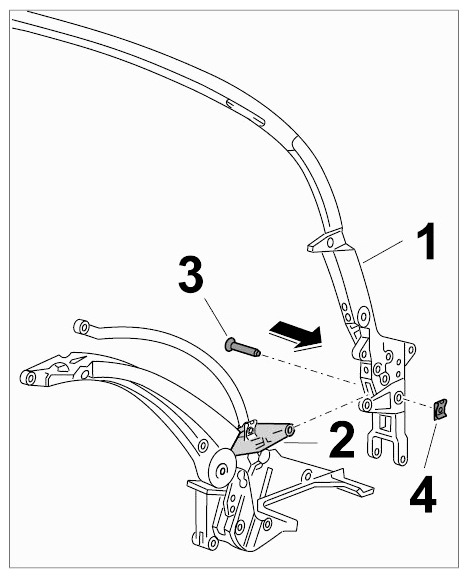

    6. Fig 2: Connecting Lower Lever To Main Folding Top Bow
    G09590407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
