Removing Tension Rope For Hood Covering

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

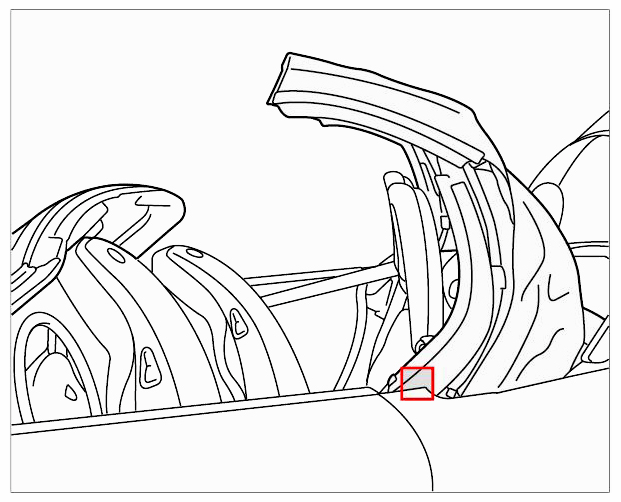

Fig 1: Identifying Installation Position Of Hood Covering
G09590329Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws at the sides -1-  from the tension rope -2-  and clamping rail -3-  .

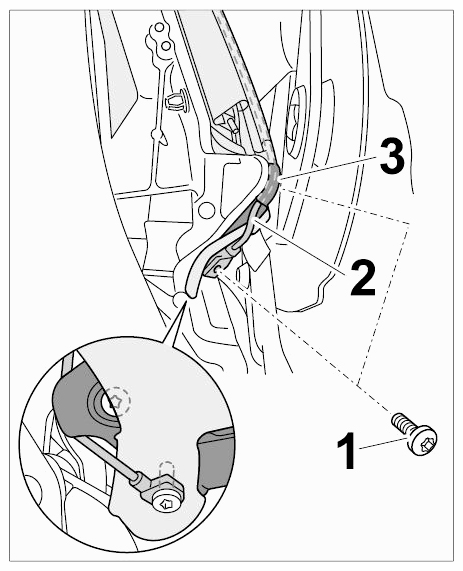

    Fig 2: Identifying Hood Covering Tension Rope Fastening Screws
    G09590330Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully tilt the hood forward with your hand.
  3. At the front B-pillar (main folding top bow), unscrew the fastening screw -1-  and remove the clamping rail -2-  .

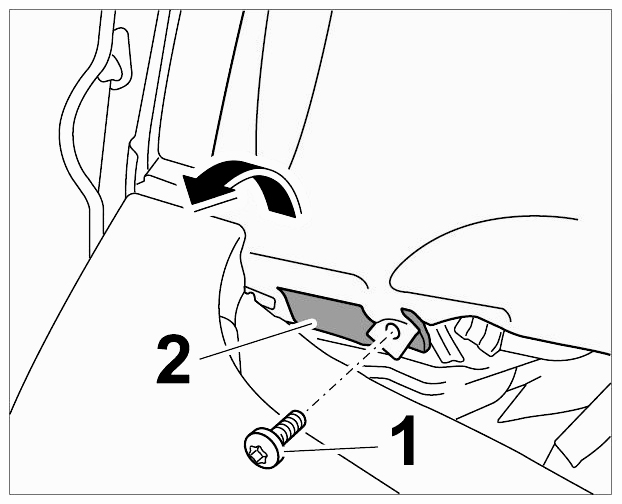

    Fig 3: Loosening Clamping Rail
    G09590331Courtesy of PORSCHE CARS NORTH AMERICA, INC.
