Removing Slide

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

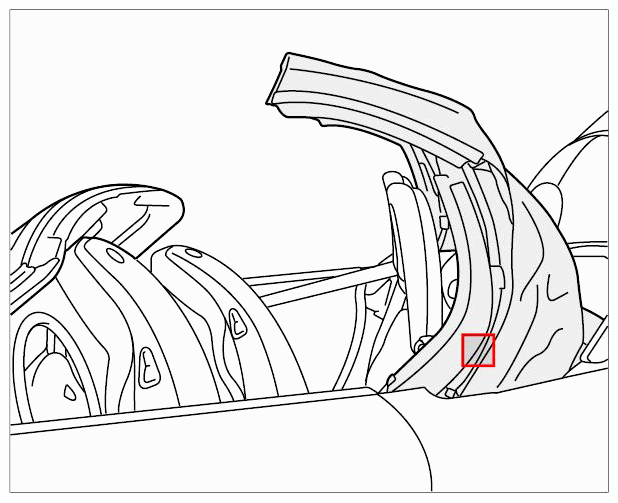

Fig 1: Identifying Installation Position Of Hood Covering
G09590354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press expanding pin of expansion rivet -1-  out of the main folding top bow -arrow A-  from the inside.
  2. Pull out slide -2-  from main folding top bow -arrow B-  , disengage cord -3- (-arrow C-)  and remove through the loop -arrow D-  .

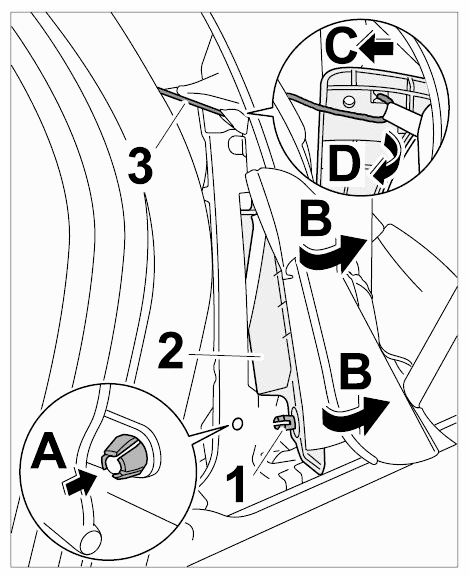

    3. Fig 2: Removing Main Folding Top Bow
    G09590355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
