Loosening Hood Covering At The Roof Frame

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

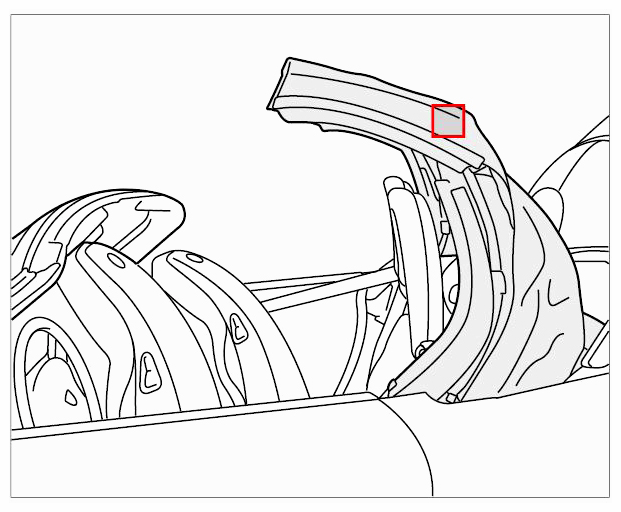

Fig 1: Identifying Installation Position Of Hood Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen Velcro fastener on inside -1- of hood covering -2- .

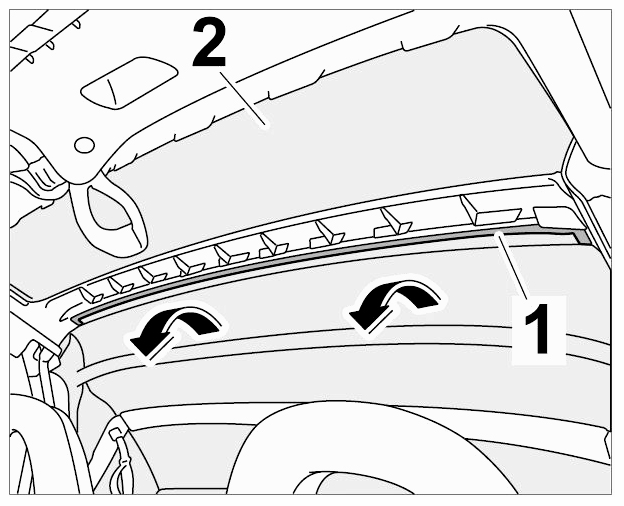

Fig 2: Loosening Hood Covering On Inside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen hood covering at front on roof frame and lay it down to the rear.

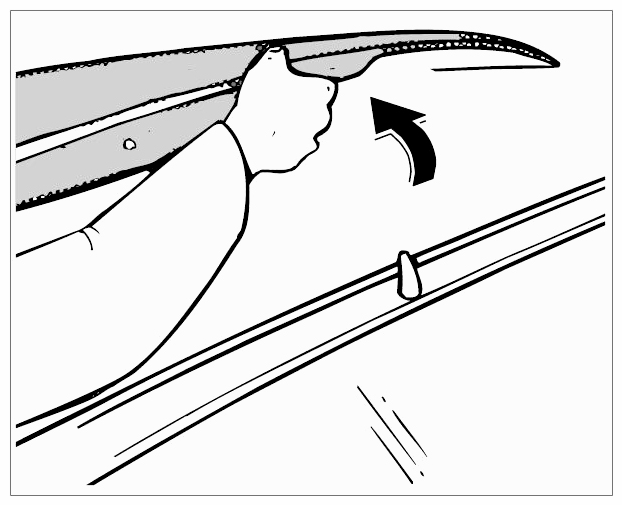

Fig 3: Removing Hood Covering At Front On Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
