Installing Rear Seal (Tension Bow)

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

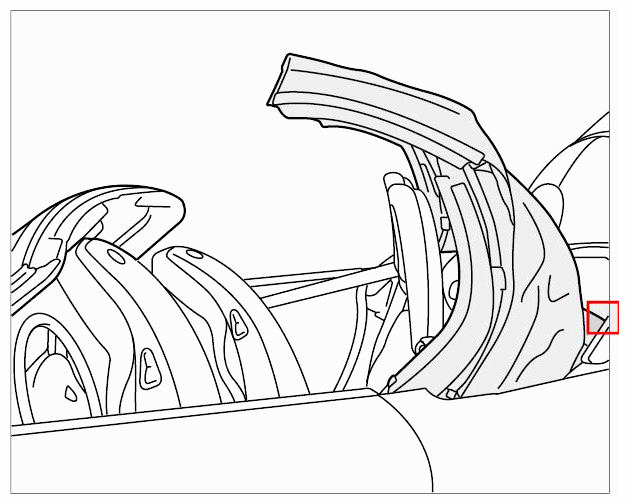

Fig 1: Identifying Installation Position Of Rear Seal (Tension Bow)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

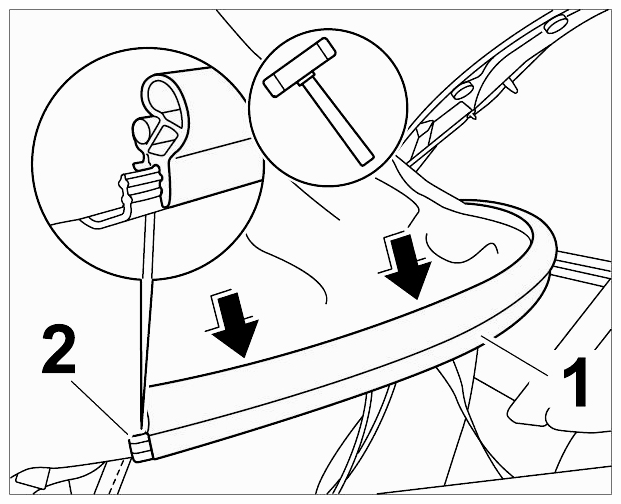

Position rear seal (tension bow) -1- on one side of tension bow -2- and tap gently into place with a plastic hammer.

Fig 2: Installing Tension Bow Rear Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
