Fastening Hood Covering At Front

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

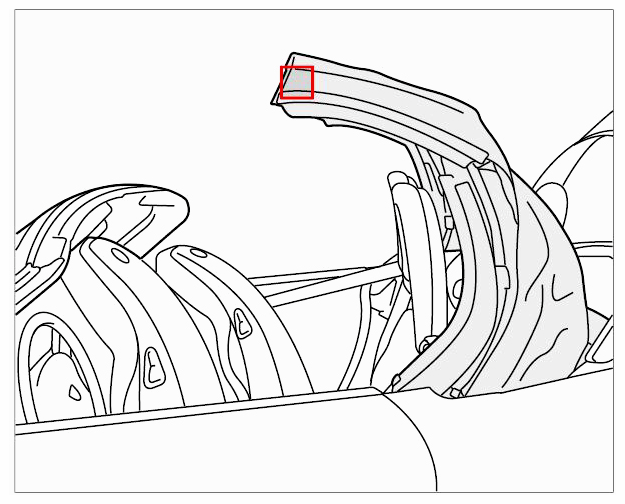

Fig 1: Identifying Installation Position Of Hood Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A self-adhesive strip is affixed to the front of the hood covering.

Information

There must be no bubbles, especially in the area of the lap seam. If necessary, re-tighten convertible top covering with pliers.

Pull the protective paper off the adhesive tape and fold the hood covering around the roof frame into the groove without wrinkles.
Fix the hood covering at the front with clamps.

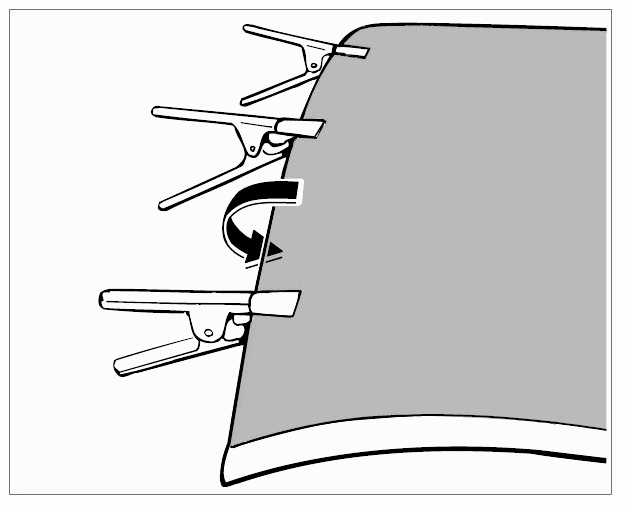

Fig 2: Pulling Protective Paper Off Adhesive Tape

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
