Removing Seal For Cowl Panel Frame

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

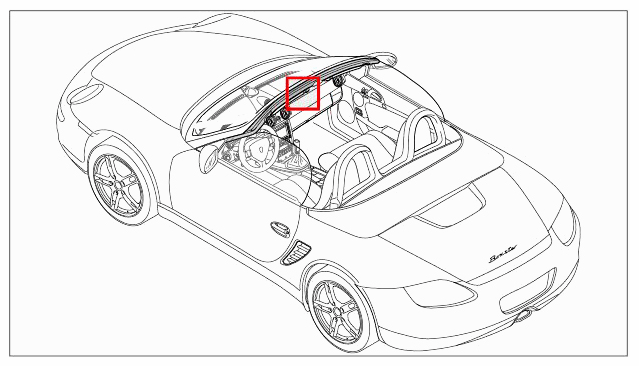

Fig 1: Identifying Removal Position Of Seal For Cowl Panel Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

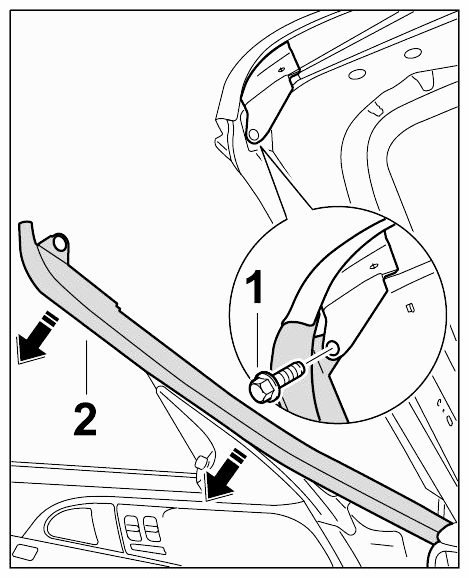

Unscrew fastening screw -1- and pull off rubber seal for door -2- on the left and right as far as the door hinge.

Fig 2: Loosening Door Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

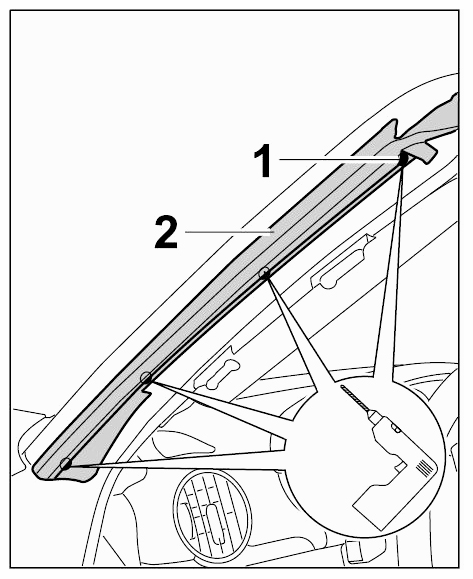

Drill out rivets -1- from the integrated sheetmetal strips on the seal for the cowl panel frame -2- on the left and right using a 4 mm drill bit.

Fig 3: Identifying Cowl Panel Frame Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

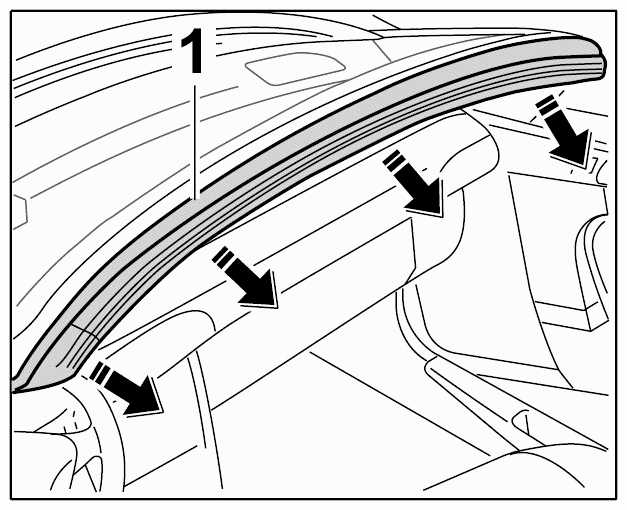

Pull seal for cowl panel frame -1- off the sheetmetal flange on the cowl panel frame.

Fig 4: Removing Seal For Cowl Panel Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
