Removing Right Water Drip Pan

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

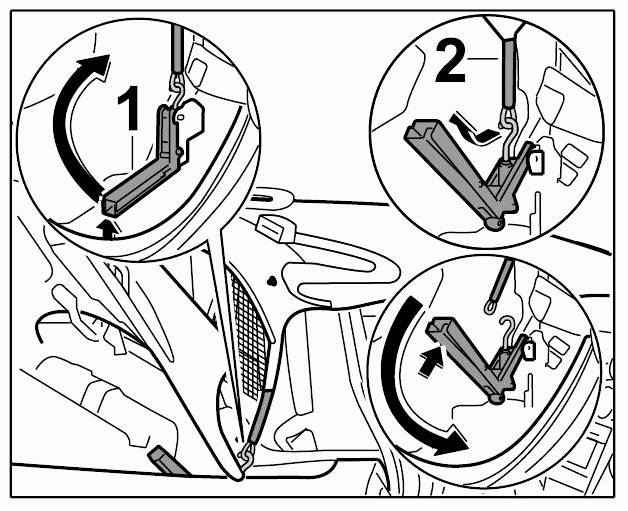

Detach the red tensioning lever -1- on the right-hand side of the vehicle. To do this, press the release handle on the underside of the tensioning lever.
Disengage the retaining eyelet for the tensioning cable -2- from the fastening hooks on the tensioning lever.

Fig 1: Releasing Tension Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Make sure not to trap or squash your fingers under the tensioning lever.
Press the tensioning lever down until it locks with an audible click.

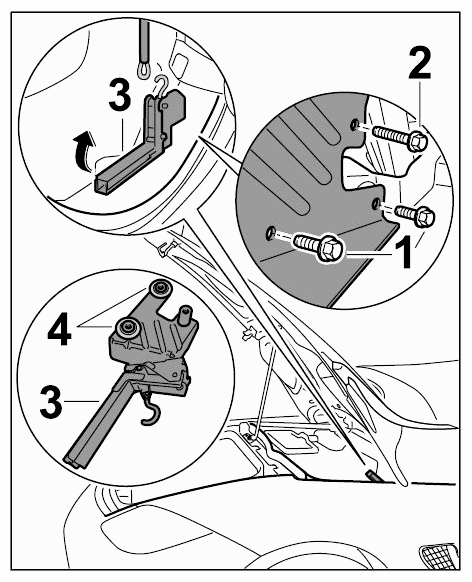

Unscrew fastening screws -1, 2- and remove clamping device -3- (-arrow-) .
Check sealing rings -4- on the back of the clamping device -3- and replace them if necessary.

Fig 2: Removing Clamping Device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

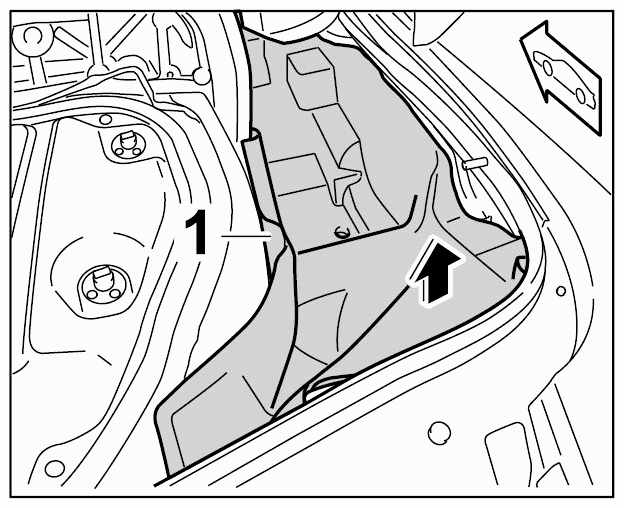

Fold over water drip pan -1- all the way around and remove it by pulling it backwards -arrow- .

Fig 3: Removing Water Drip Pan (Right Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
